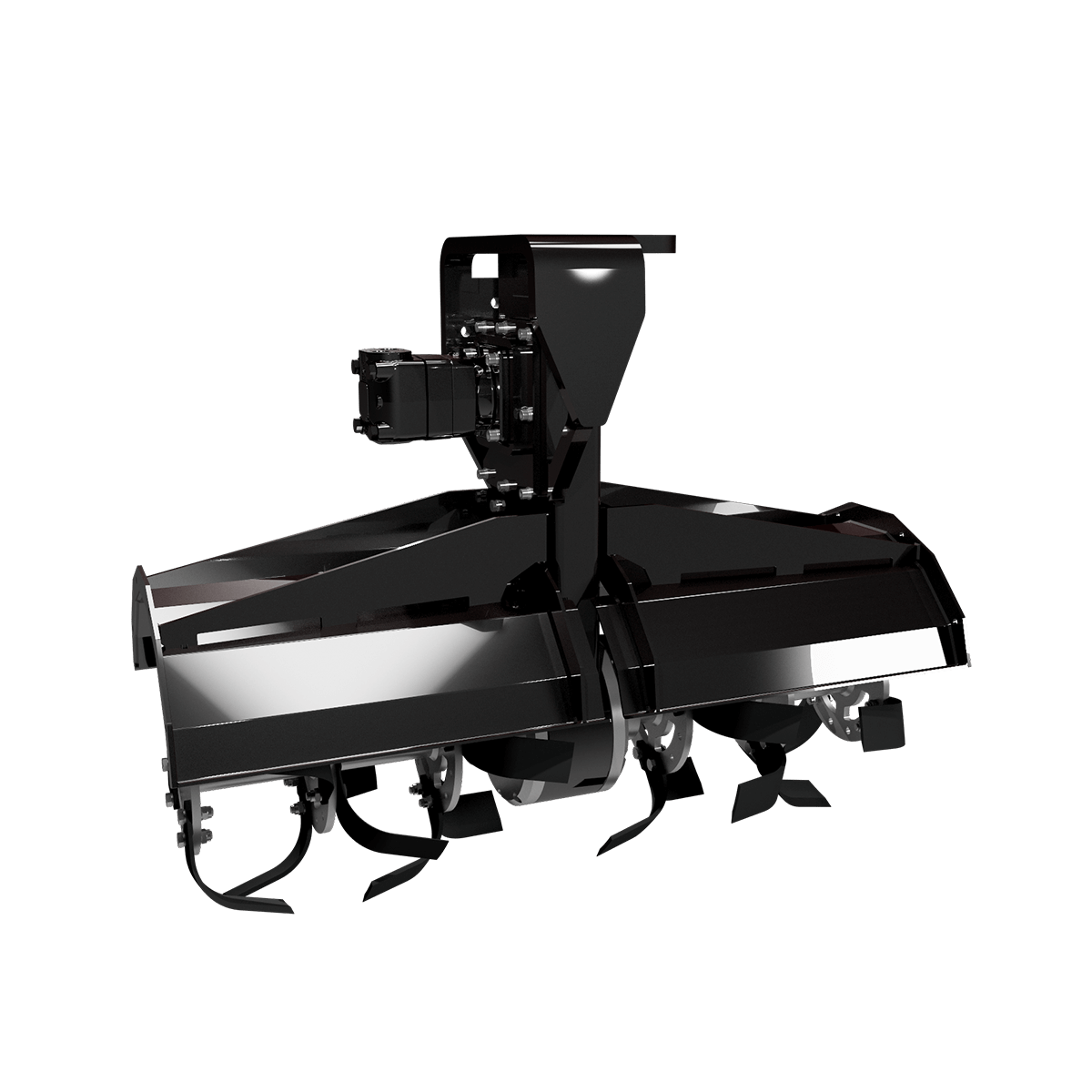

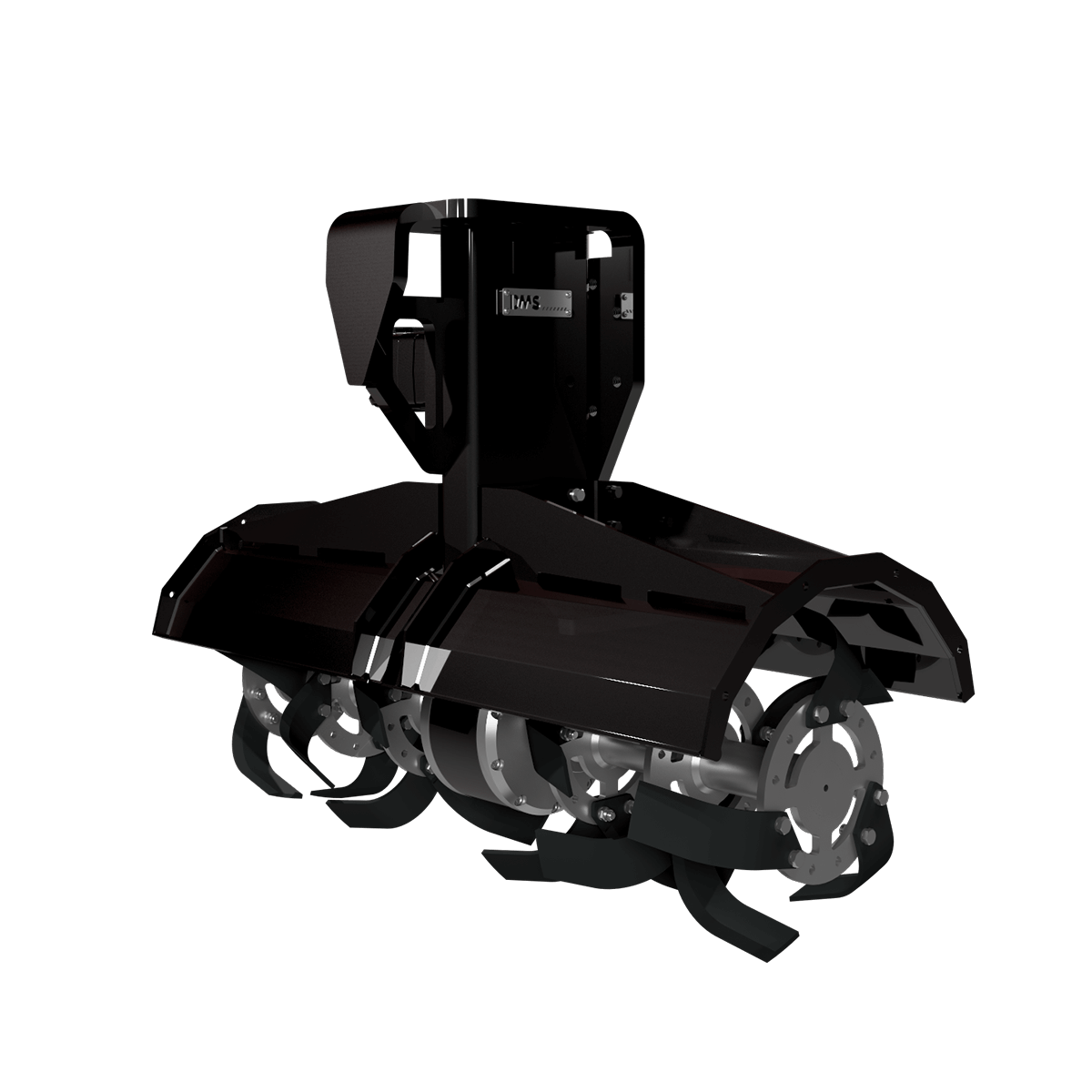

Rotary Tiller BF100 tilling drum

Data sheet

Product brochure

The **Rotary Tiller BF100 with tilling drum by DMS Technology** is our product innovation for maximum multifunctionality and a versatile tool for compact and mini excavators. It can be used as an **attachment solution for work on all types of surfaces** and also allows efficient access to hard-to-reach areas. The drive unit is equipped with a practical exchange system that enables fast and uncomplicated replacement of different tool attachments. The BF100 version with extended tilling drums and guard plates is suitable for excavator classes up to 12 t.

	BF100 tilling drum	BF100 broom sweeper
Excavator class [t]	6–12	6–12
Weight [kg]	290	255
Width [mm]	1200	1500
Max. hydraulic flow [l/min]	125	125
Operating pressure [bar]	210	210
Drum speed at 100 l/min [1/min]	260	260

Expandable

The tilling drums and guard plates are also offered in 100 mm wide versions.

Multifunctional

The tiller can also be converted for use as a rotary weed brush or hydraulic broom.

bodenfraese-produktvorteile-dms-technologie

High performance

Powerful drive unit with up to 260 rpm at 60 l/min.

Expansion kit

Longer tilling drums including guard plate extensions for larger work area.

Water proof

Completely water proof and suitable for application in wet environments.

Useful for soil tilling, weed removal or broom cleanup.

For every work step

Single screw quick-change function for changing tool attachments in minutes.

Uncomplicated

The robust design enables long, maintenance-free use under extreme conditions.

Low maintenance

DMS Rotary Tiller in action
