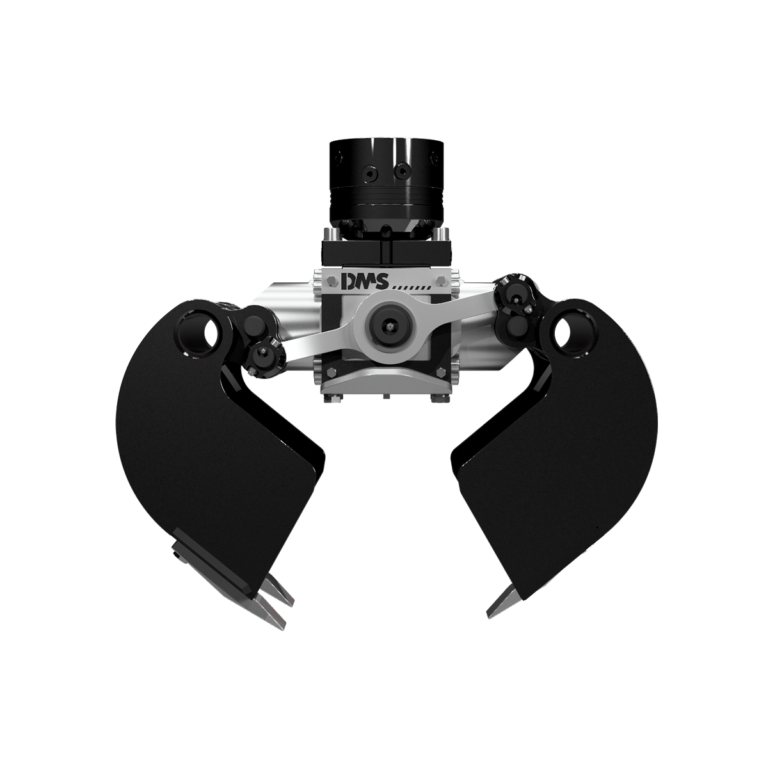

The Digging Grab with horizontal hydraulic cylinder is our attachment solution for efficient digging of trenches and shafts. Due to the optimized shell shape, the movement of bulk material and the gripping of larger objects is possible at the same time. The grab's patented cylinder design combines a compact structure with strong, double-acting closing force and high damage resistance. The Digging Grab with horizontal cylinder is available as a fixed mount or swinging mount version.

Capacity [l] 200
Weight (without rotator) [kg] 348
Weight rotator [kg] 29
Operating pressure opening/closing [bar] 280
Operating pressure rotation [bar] 280
Recommended pump capacity rotation [l] 6–25
Recommended pump capacity opening/closing [l] 40–80
Closing force [kN] 26
Torque [Nm] 1200
Number of teeth 5
Max. swinging mount travel [mm] 1150

Low profile

The grab has a low height both in closed and open position. The compact design ensures a perfect power-to-weight ratio.

Optimal grip

The volume and span of the shells are very wide when open, which, in addition to the digging function, allows gripping a wide variety of materials.

sortiergreifer-produkvorteile-hydarulikzylinder-dms-technologie
Piston protection

The fully encapsulated piston rod is permanently protected against external influences.

Internal oil supply

Our patented design eliminates the need for vulnerable hydraulic hoses in the work area.

ACCESSIBLE LUBRICATION POINTS

Protected and easily accessible lubrication points simplify maintenance.

Modular bolt-on teeth

The teeth on the front edges can easily be removed or fitted with accessory parts.

sortiergreifer-produkvorteile-aufbau-dms-technologie
Low maintenance bushings

Grease reservoirs incorporated into the brass bushings provide long-term lubrication.

HIGH STRENGTH MATERIAL

Shells are reinforced with wear-resistant steel on sides and cutting edges.

DMS Digging Grab in action

You are currently viewing a placeholder content from Youtube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

You are currently viewing a placeholder content from Youtube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Innovation at the core

The specially developed DMS cylinder drive is the hydraulic heart of our grabs. Due to the double-acting plunger cylinder with oil pressure supply on both sides, the force generated for opening and closing is identical. Inside the cylinder, not only the piston rod is completely encapsulated and protected. The oil channels also run internally, eliminating the need for vulnerable hoses on the exterior.


With the horizontal alignment, ideal force transmission can be achieved at compact height, providing our grabs with a perfect power-to-weight ratio. With this design and technology, DMS creates ideal conditions for performance, robustness and durability.

Hydraulikzylinder als Herzstück bei DMS

Delivery options

Scope of delivery
Available accessories

Accessory highlights

The Softgrip is your ideal helper for damage-free handling and placement of stones and objects with straight or smooth surfaces. Softgrip
The Pipegrip as a practical attachment enables the gentle, precise positioning of rounded construction materials such as pipes or manhole rings. Pipegrip
Our Swing Damper, specially developed for grabs with pendulum joint, prevents uncontrolled swinging on the crane or boom due to friction. Swing Damper
