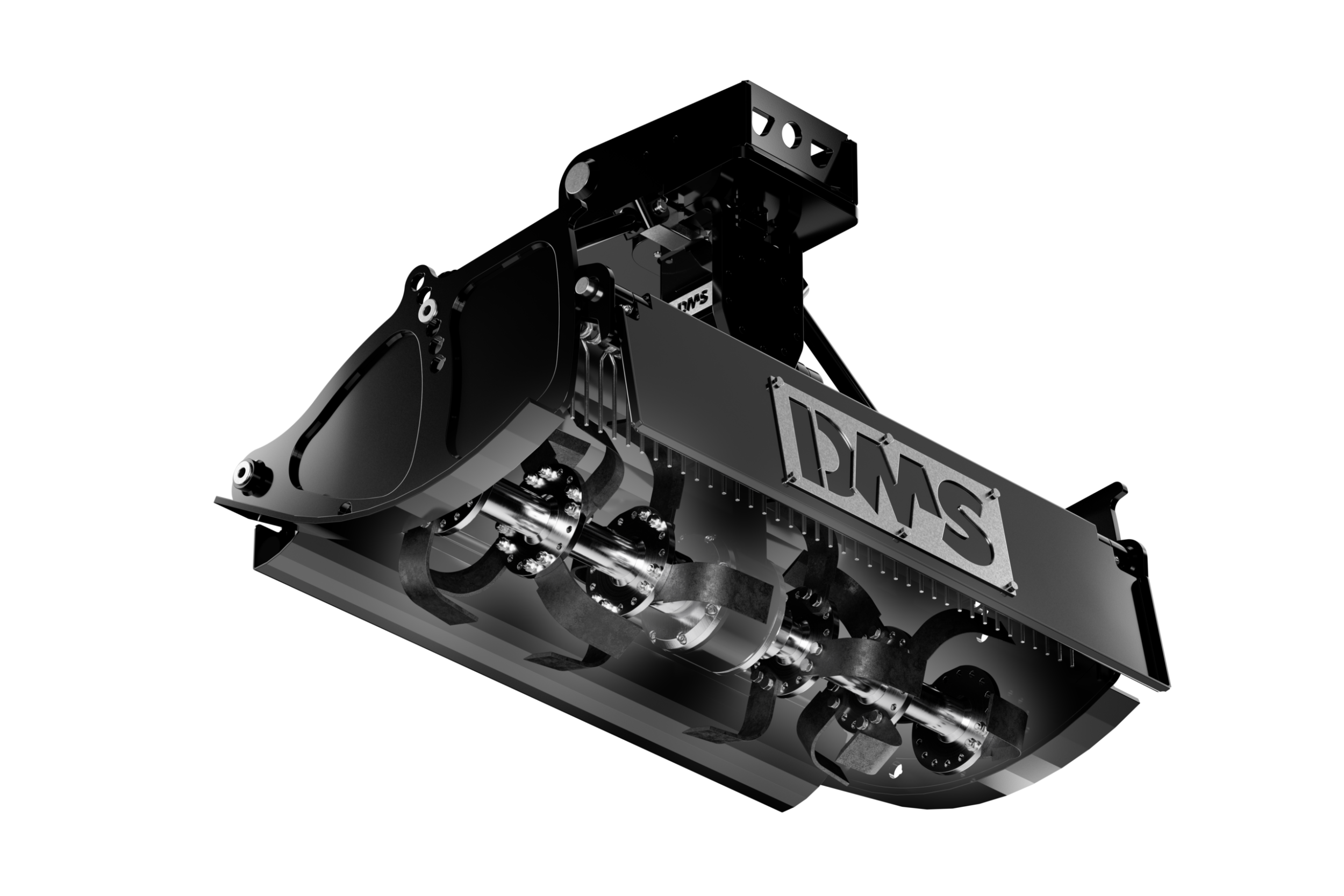

The DMS rotary tiller BF70100 enables professional soil preparation directly with the excavator already on site. Instead of costly material transport or purchasing or renting additional special-purpose machinery, the soil is loosened, mixed and screened in a single pass. The reverse-tilling principle creates a fine, crumbly surface and optimum conditions for seeding and revegetation.

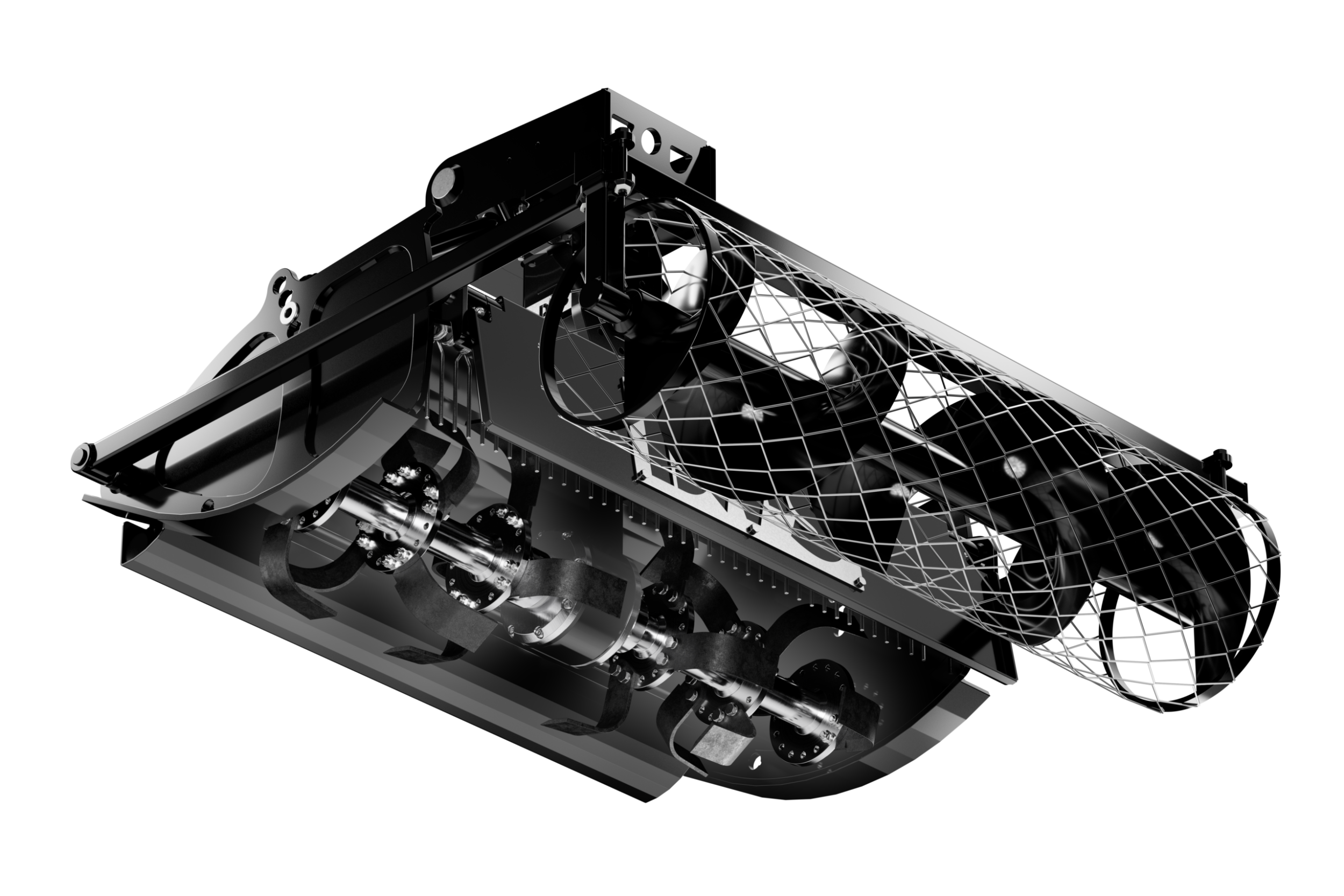

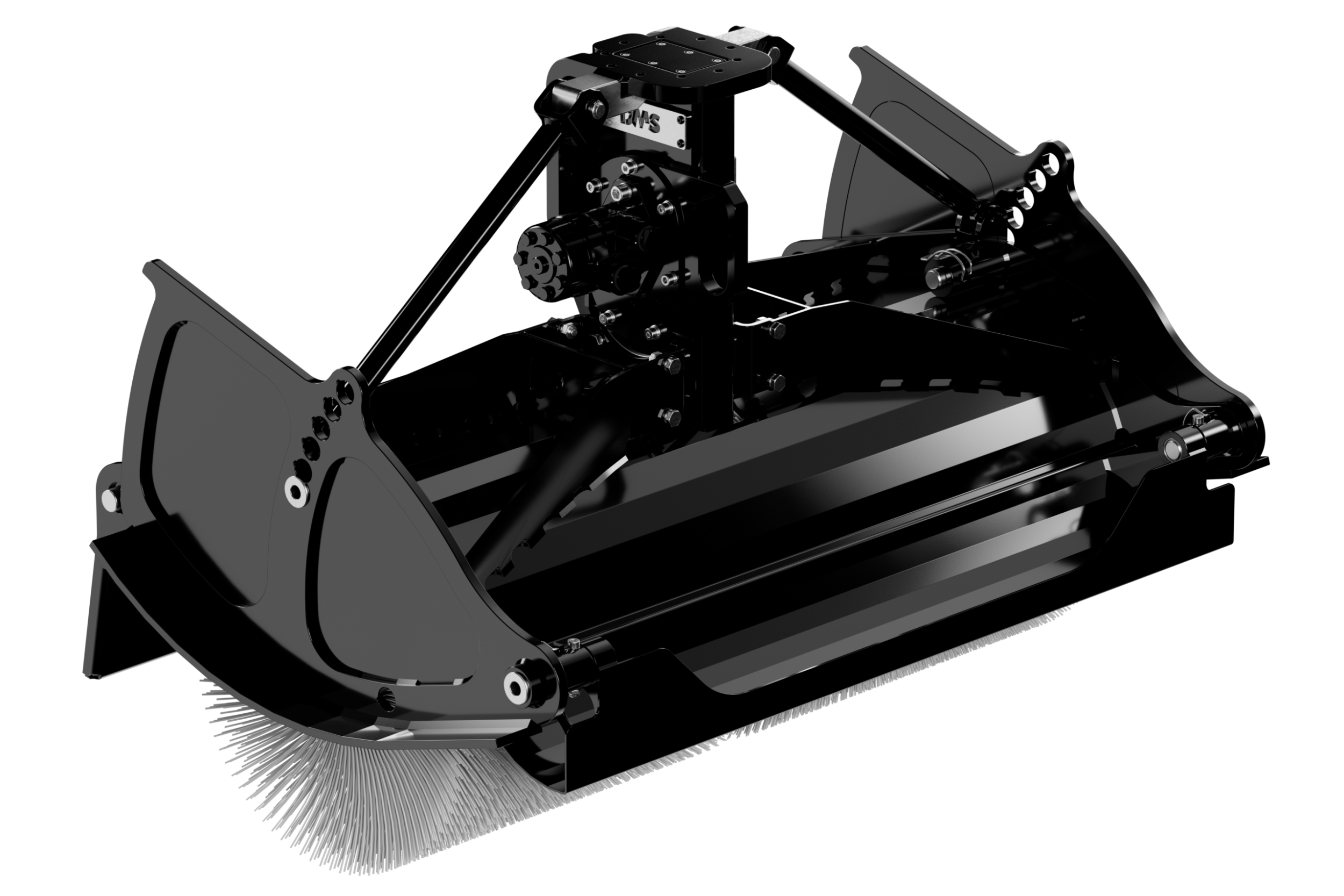

Optional accessories such as sweeping rollers or weed brushes can further increase excavator utilization. This allows users to reduce costs and maintenance requirements, save time and gain the flexibility to respond to changing construction-site requirements at any time.
| Technical specifications | ||
|---|---|---|
| Excavator weight class [t] | 3–7 | |
| Weight [kg] | 195 | |
| Working width [mm] | 1000 | |
| Overall width [mm] | 1290 | |
| Flow rate [L/min] | Recommended 75 | |
| Operating pressure | max. 200 | |
| Rotational speed at 75 L/min [rpm] | 410 |
Increase excavator utilization instead of investing in expensive special-purpose machinery
Work from the cab rather than close to the tiller or on slopes where there is a risk of tipping

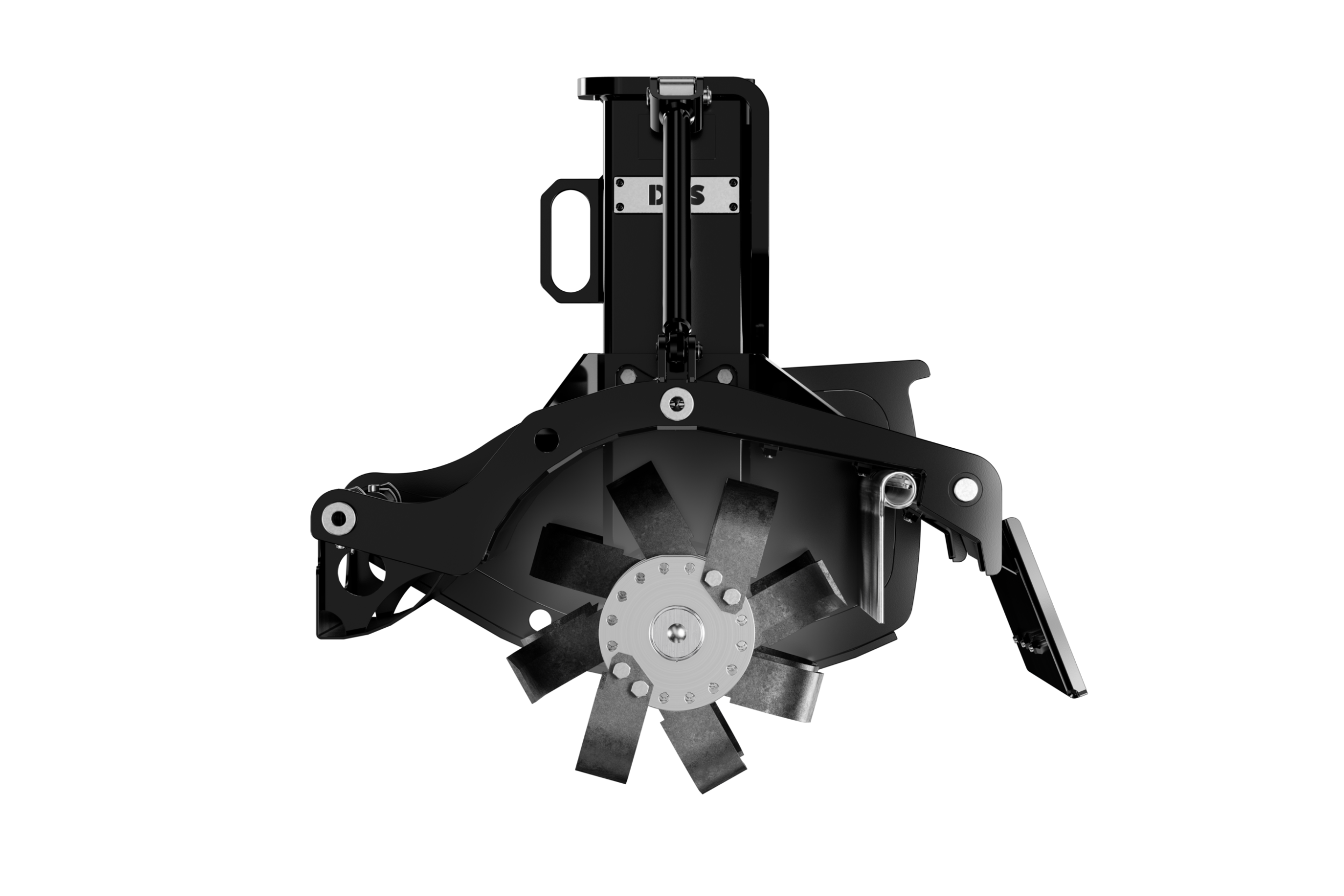

Adjustable support feet allow adaptation to site conditions – for optimum work results
Protection against damage if foreign objects in the soil cause a blockage, plus a robust housing
Drive without a case drain line, designed for standard operating pressures – no complex settings required
Plug-in tool shaft: milling, sweeping and weed removal with a single machine
Increase excavator utilization instead of investing in expensive special-purpose machinery
Work from the cab rather than close to the tiller or on slopes where there is a risk of tipping
Plug-in tool shaft: milling, sweeping and weed removal with a single machine
Adjustable support feet allow adaptation to site conditions – for optimum work results
Protection against damage if foreign objects in the soil cause a blockage, plus a robust housing
Drive without a case drain line, designed for standard operating pressures – no complex settings required
