The Rotary Tiller is our product innovation for highest multifunctionality - a versatile tool for compact and mini excavators. It can be used as an attachment solution for work on all types of surfaces and can also easily access hard-to-reach areas. The drive unit features an uncomplicated exchange system that allows different tool attachments to be changed quickly. The BF100 version with extended tilling drums and guard plates is suitable for excavator classes up to 12 t.

BF35 short drum BF35 long drum Brush/broom
Excavator class [t] 1–6 1–6 1–6
Weight [kg] 95 115 95
Width [mm] 620 1020 1250
Max. hydraulic flow [l/min] 60 60 60
Operating pressure [bar] 200 200 200
Drum speed at 30 l/min [1/min] 130 130 130
Drum speed at 60 l/min [1/min] 260 260 260
dmstechnologie-bodenfräse-frontal

Expandable

For the tilling drums and guard plates, 100 mm wide versions are available.

dmstechnologie-bodenfräse-kehraufsatz-frontal

Multifunctional

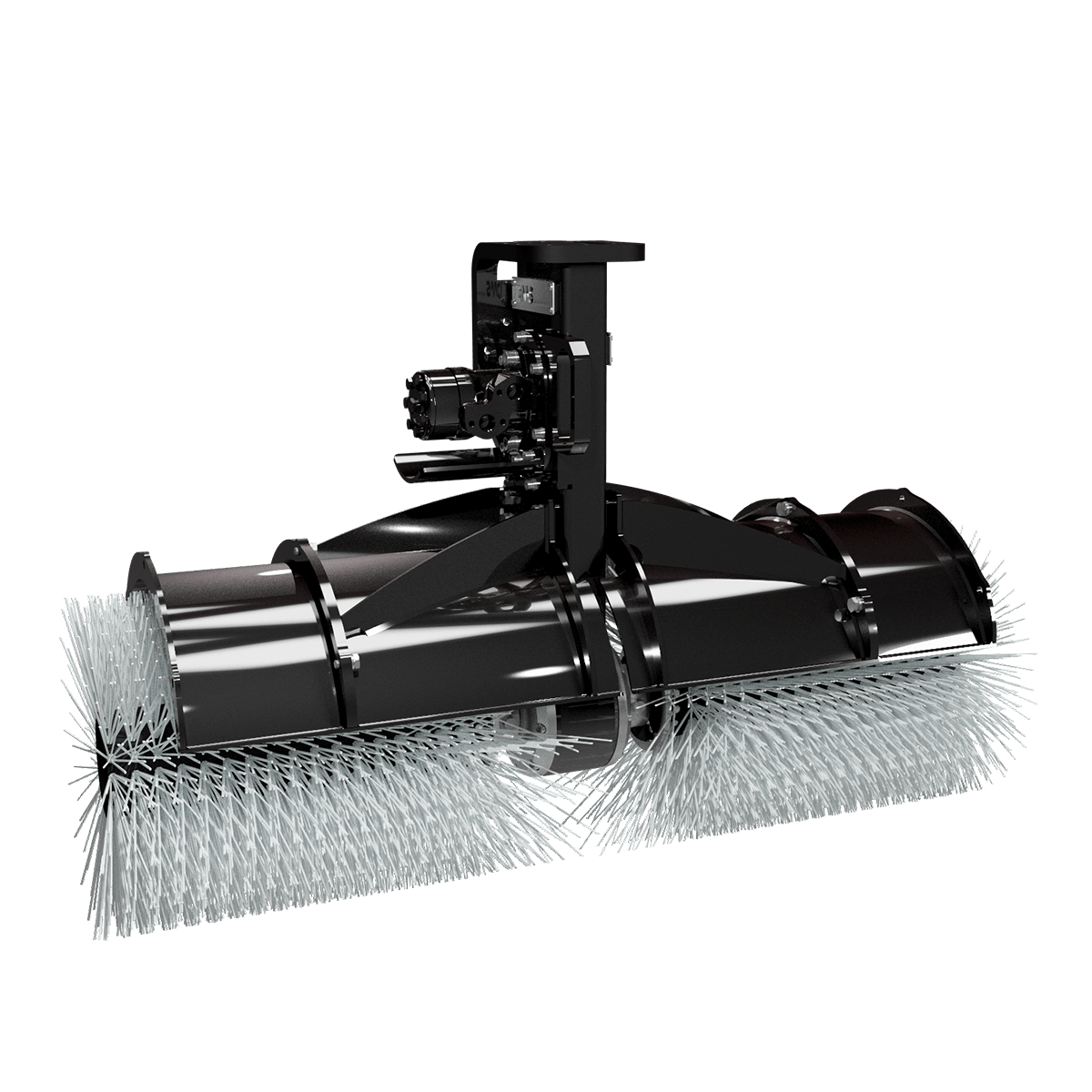

Tiller can be converted into rotary weed brush or hydraulic broom.

bodenfraese-kehrwalze-produktvorteile-dms-technologie
High performance

Powerful drive unit with up to 260 rpm at 60 l/min.

Expansion kit

Longer tilling drums including guard plate extensions for larger work area.

Water proof

Completely water proof and suitable for application in wet environments.
