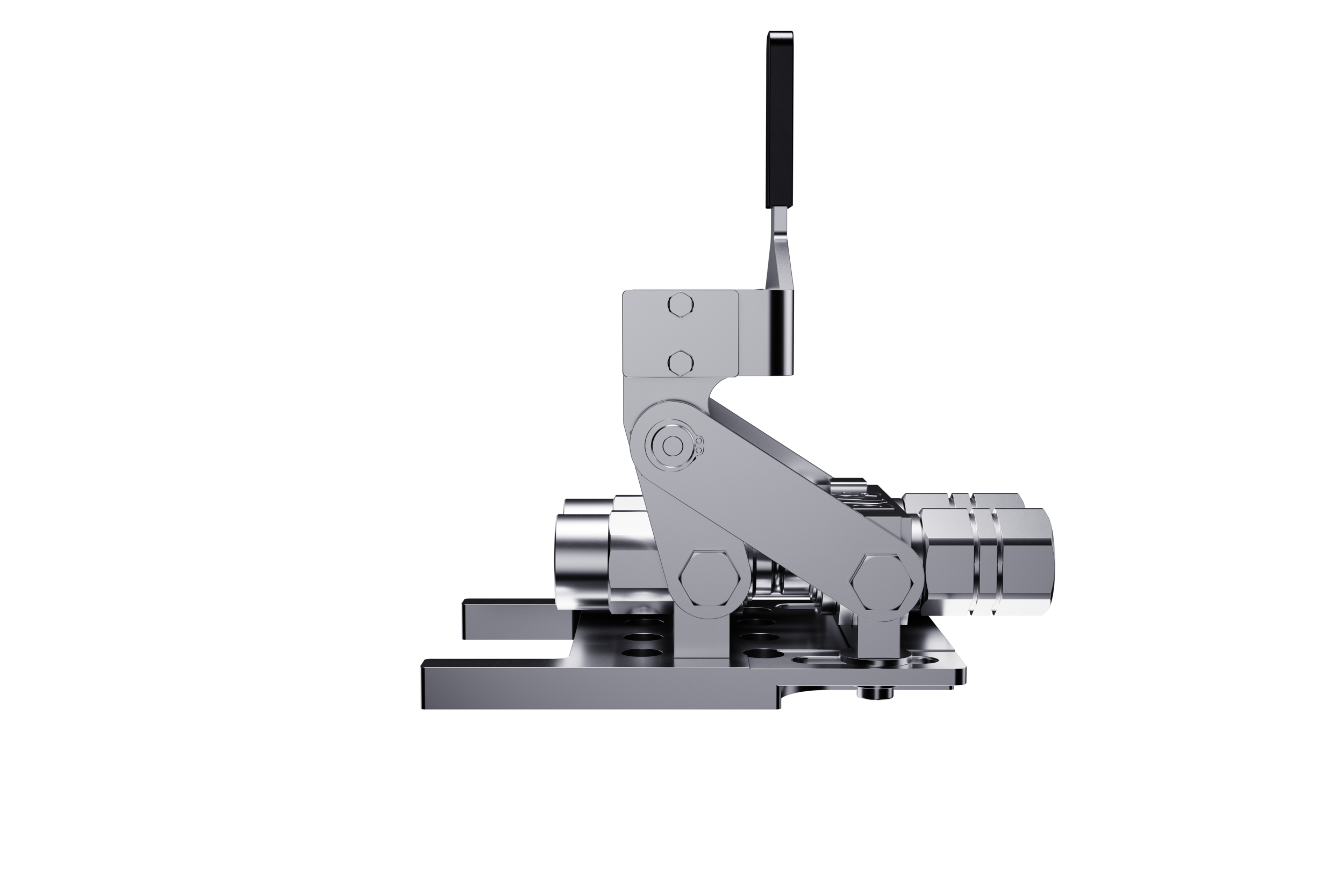

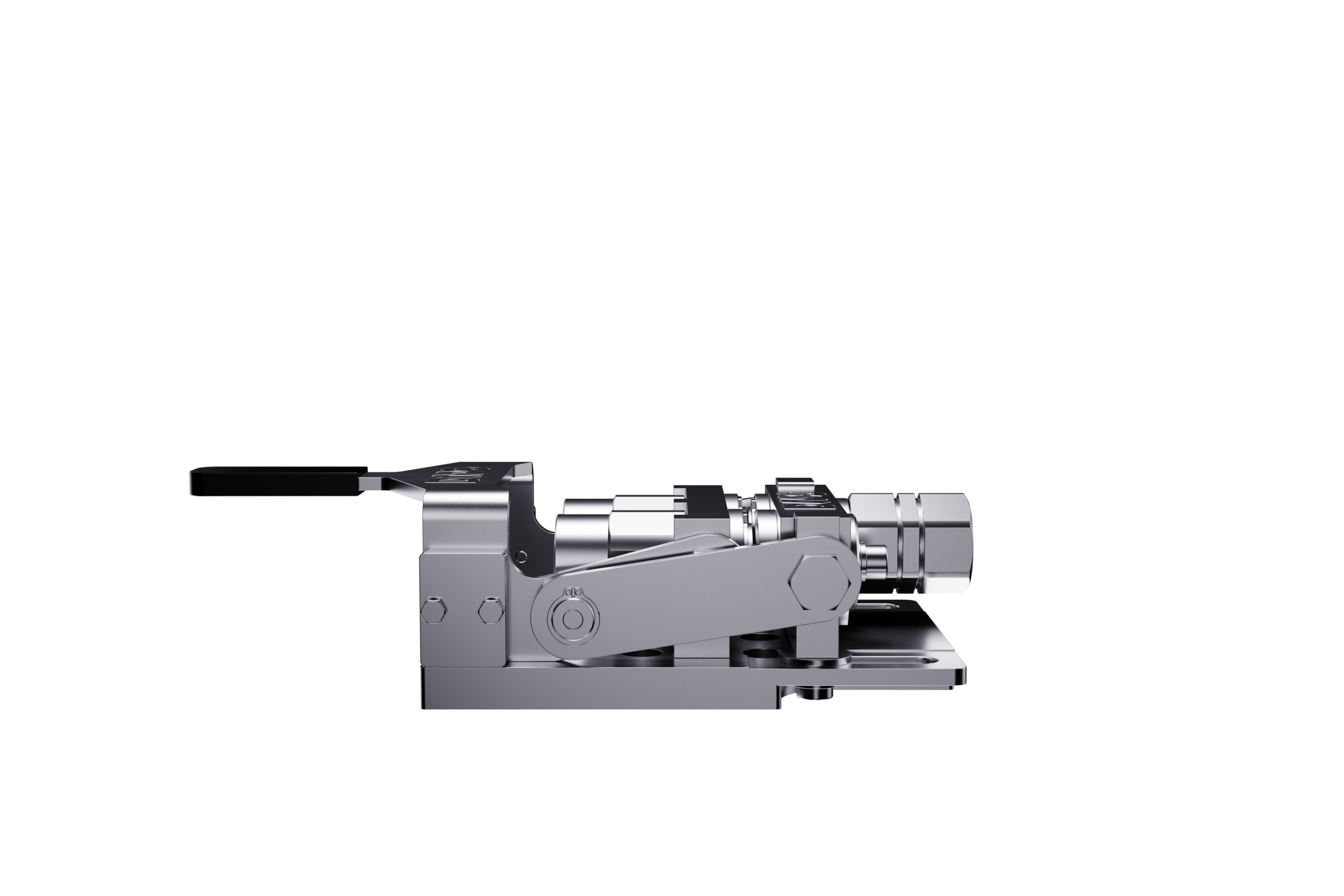

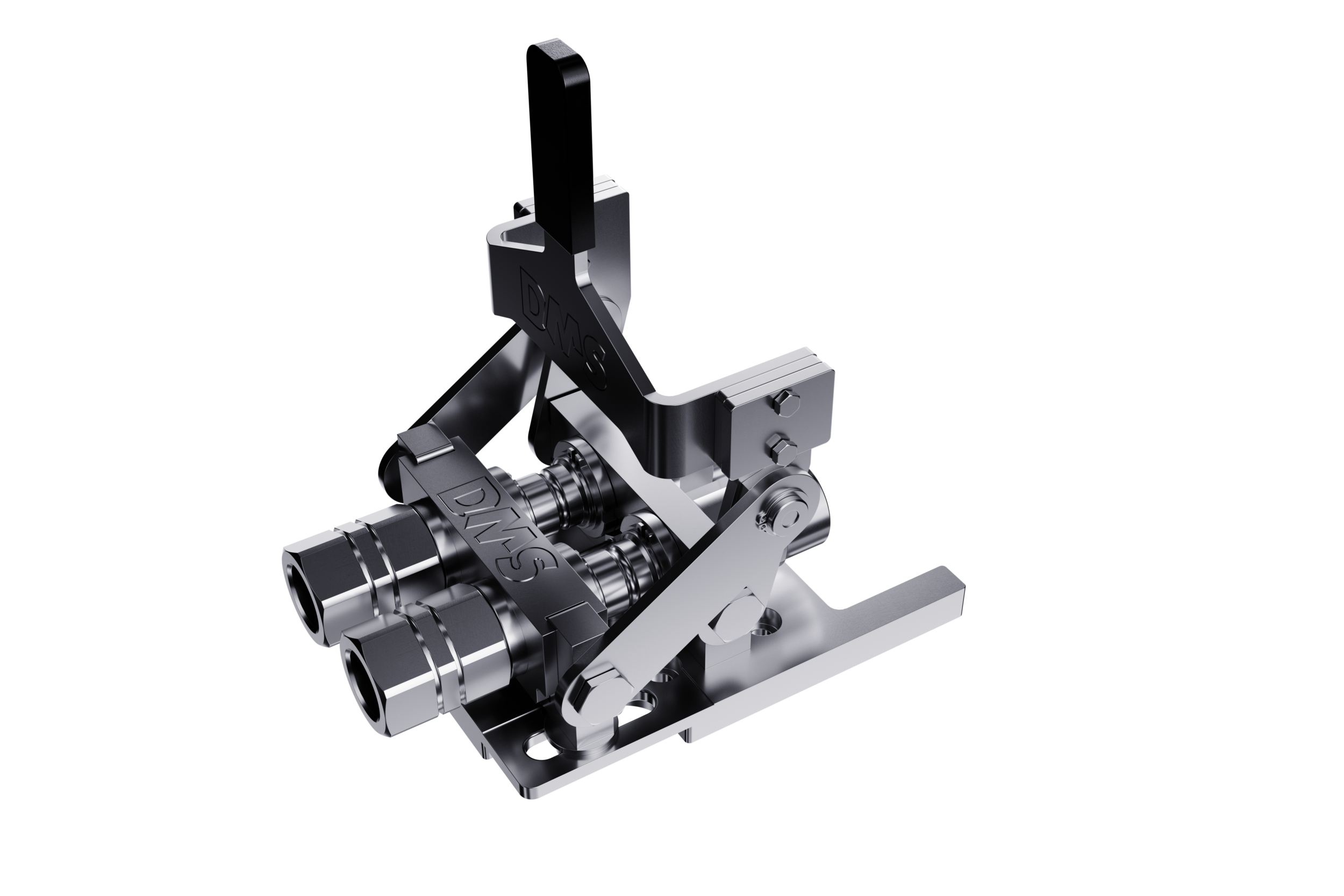

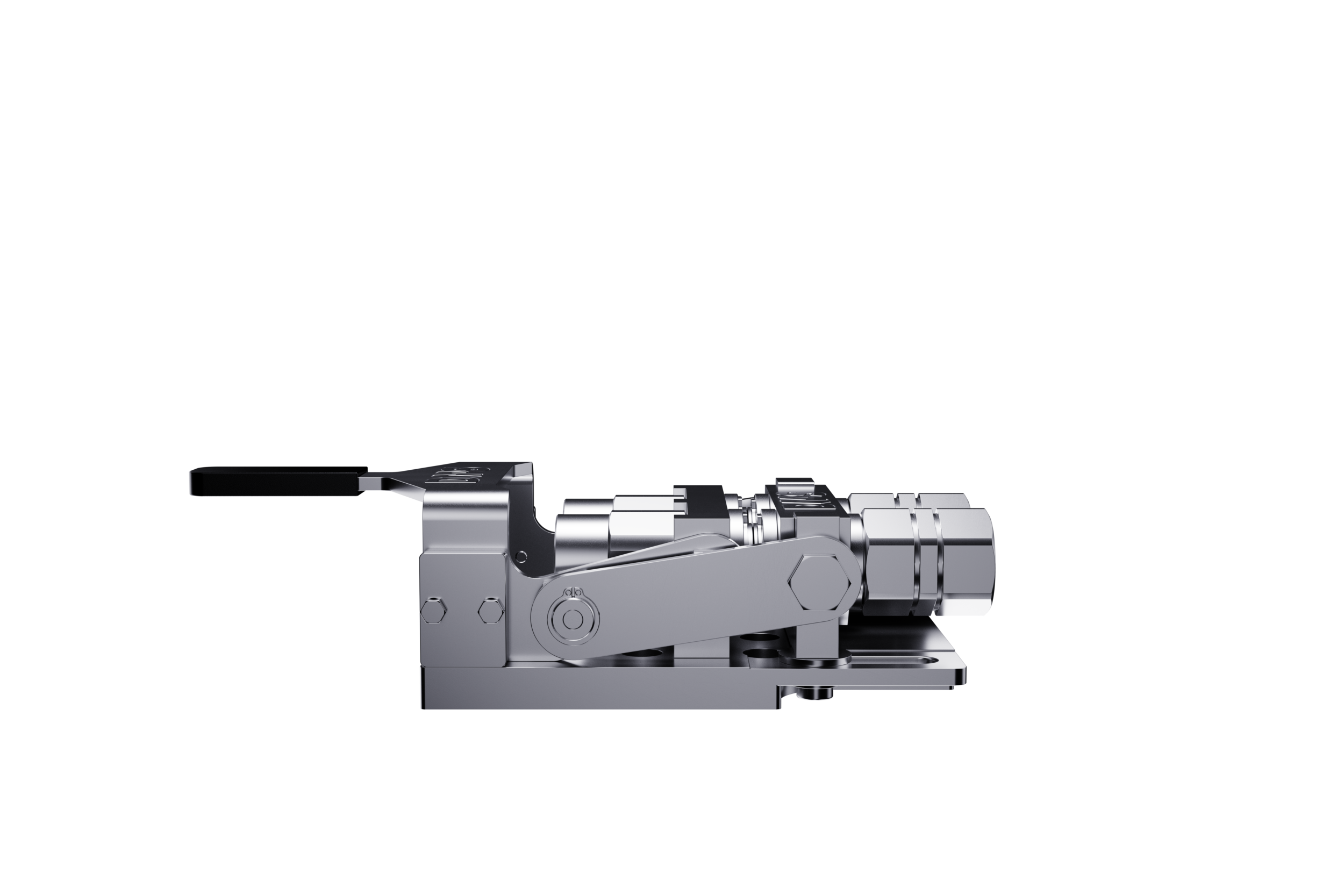

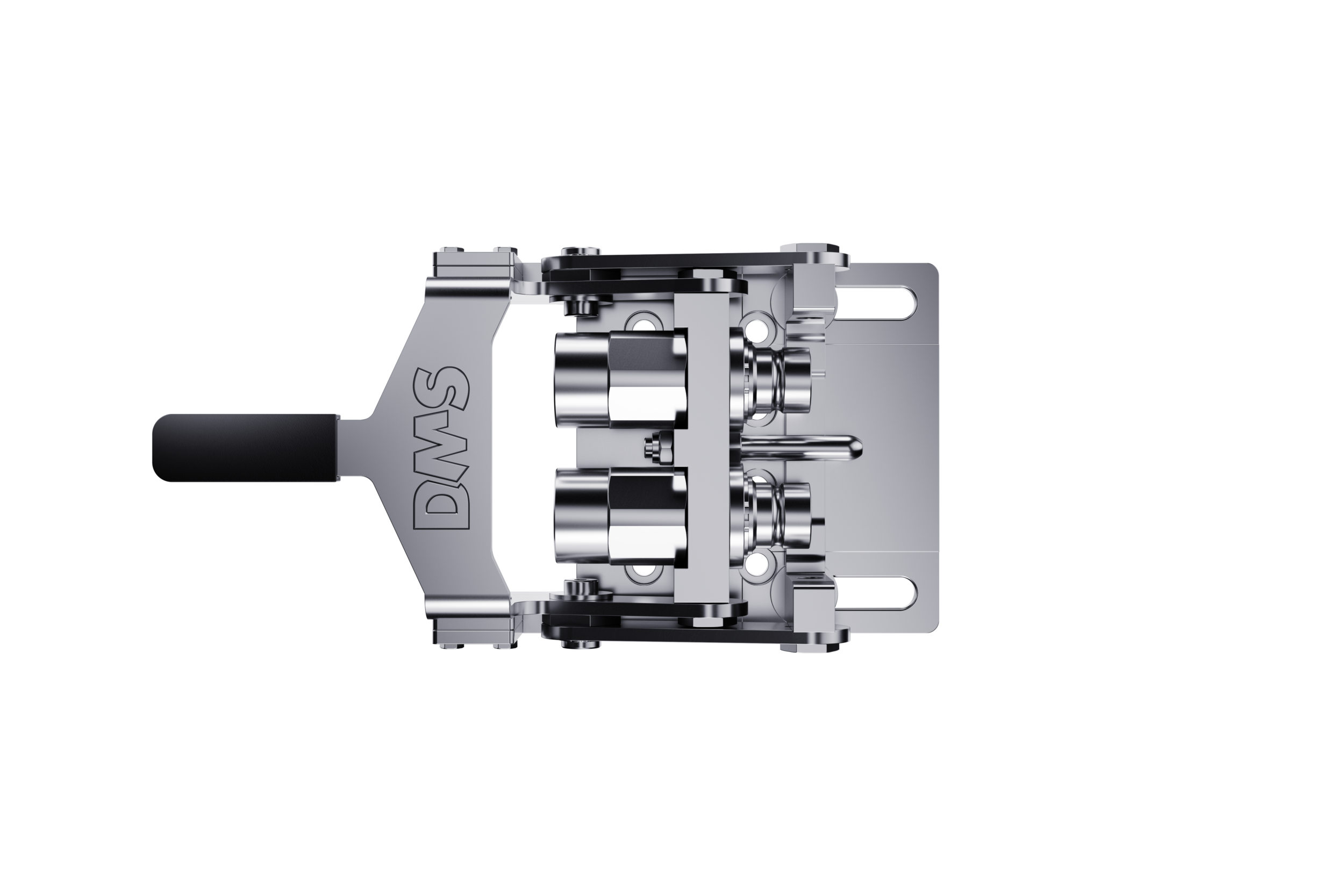

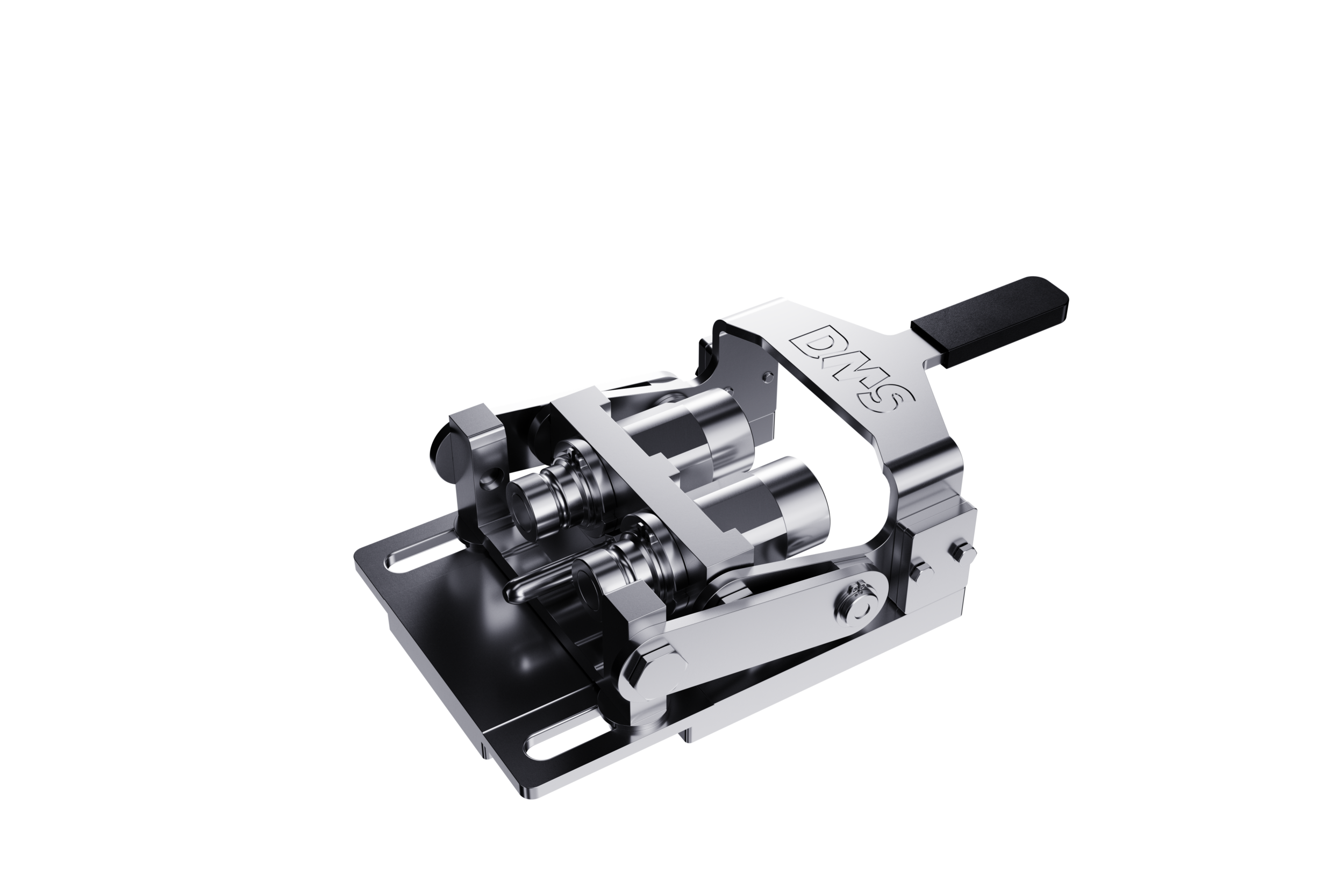

The DMS multi-coupling system (MKS) minimizes the effort involved in coupling hydraulic attachments. Thanks to the new magnetic locking mechanism, the hydraulic connections of the attachments can be made or released within seconds, conveniently with one hand. The design prevents errors such as crossed or incompletely connected couplings, ensuring a reliable hydraulic connection.
The use of flat-face couplings makes them easy to keep clean. The system is complemented by the innovative magnetic coupling dock, which protects the couplings and hoses and keeps them ready for use at all times. The MKS thus reduces downtime, increases productivity and helps ensure smooth day-to-day operations on the construction site.
| Technical specifications | ||
|---|---|---|
| Length [mm] | 290 | |
| Height [mm] | 80 | |
| Width [mm] | 150 | |
| Operating pressure [bar] | 300 | |
| Flow rates [l/min] | 100 | |
| Static pressure [bar] | Size [inches] | |
| Connection [inches] | G3/4 |
Quickly change hydraulic attachments
The DMS multi-coupling system (MKS) enables fast hydraulic attachment changes. The magnetic locking mechanism facilitates one-handed operation, while the robust design protects the system from damage in tough construction-site conditions.
Protected and ready for use
The magnetic coupling dock protects couplings and hoses when not in use and keeps all components ready for use at all times. Secure storage reduces damage and increases the long-term reliability of the multi-coupling system.
by rapid coupling
under residual pressure
by simply changing the attachments
via a standardised hydraulic interface
Guaranteed by the anti-twist mechanism
by means of couplings that are always fully closed
thanks to innovative magnetic garages
