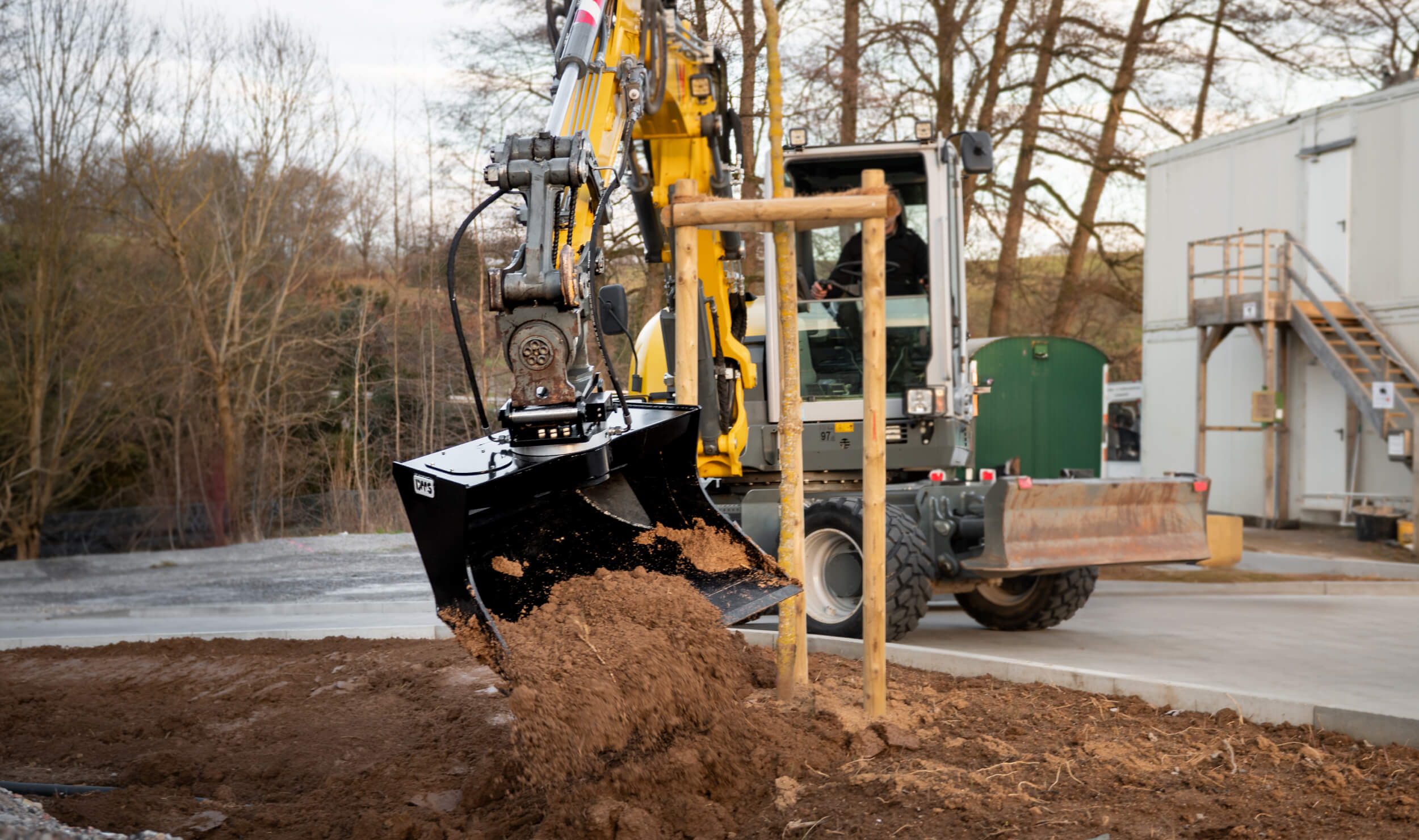

The DMS Rotator Bucket combines full freedom of movement with a compact design. The 360 degree rotatability of the bucket makes for smooth and easy operating in levelling, excavating and modelling, enabling a large number of surfaces and profiles to be made without having to constantly reposition the excavator, and offers the advantage of simple and correct height control as long as the excavator is positioned correctly. The robust design with it's worm gearbox is low-maintenance and guarantees a long service life, while the optimised dead weight and low installation height enable efficient operations. An indispensable attachment for maximum precision and flexibility, perfect for tasks such as filling kerbs, backfilling dry stone walls, or backfilling trenches.

Excavator size-class [t] 7-10
Cutting width [mm] 1400
Weight [kg] 305
Volume [l] 400
Max. output speed [RPM] 10-11
Max. torque [Nm] 8460
Recomm. Turning litre capacity [l/min] 50-60
Operating pressure rotation max. [bar] 210

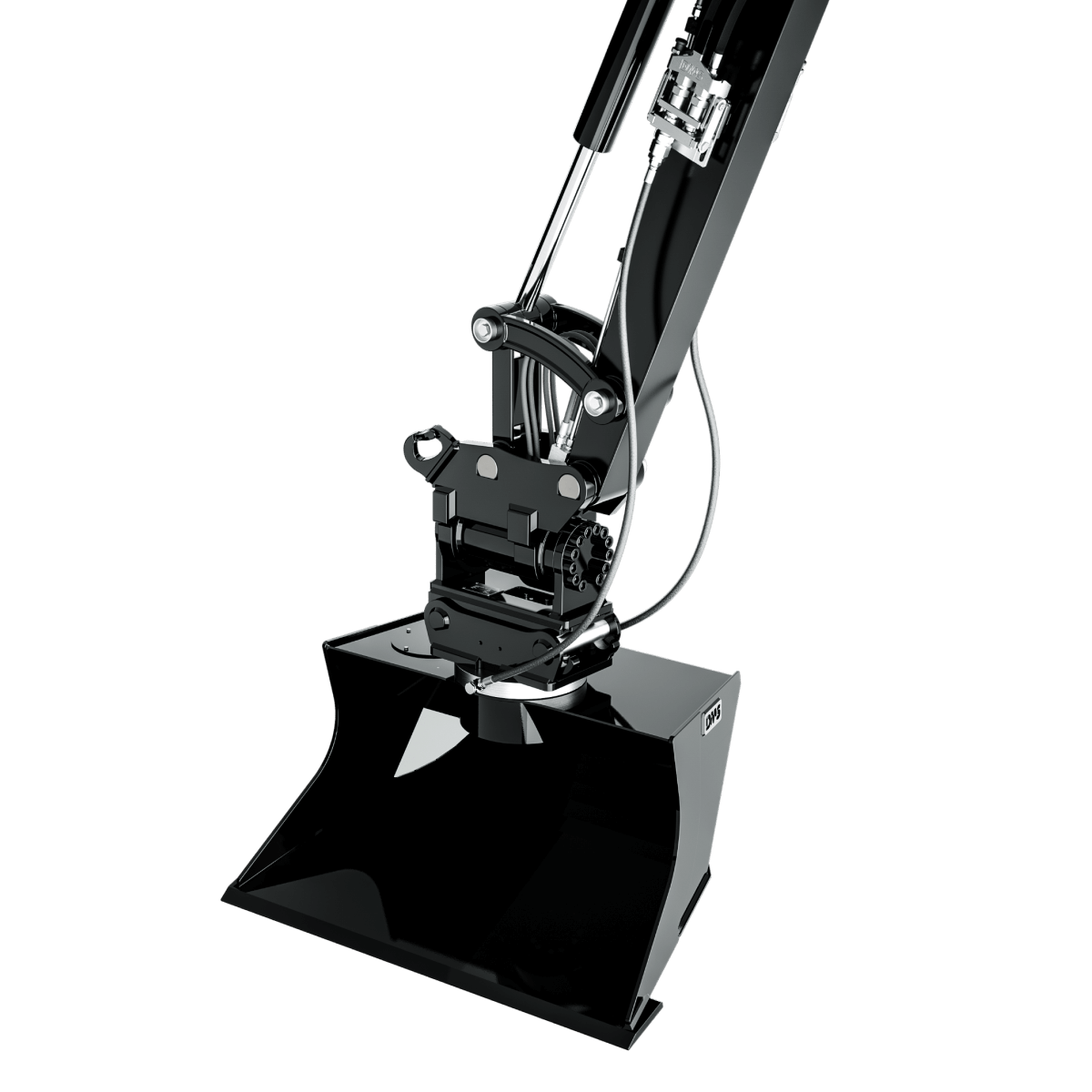

rotatorloeffel-seitenansicht-aufbauhoehe-dms-technologie

Low body height

The low body height ensures ideal power transmission and optimum handling. Despite its compact design, it offers a surprisingly large volume capacity and combines it's well thought-out design with expert functionality.

rotatorloeffel-draufsicht-loeffelform-dms-technologie

Optimum bucket shape

The tapered housing results in a deliberately narrow bucket back without protruding corners. In addition, the advanced cutting edge enables a variable bucket volume and increases versatility in operations.

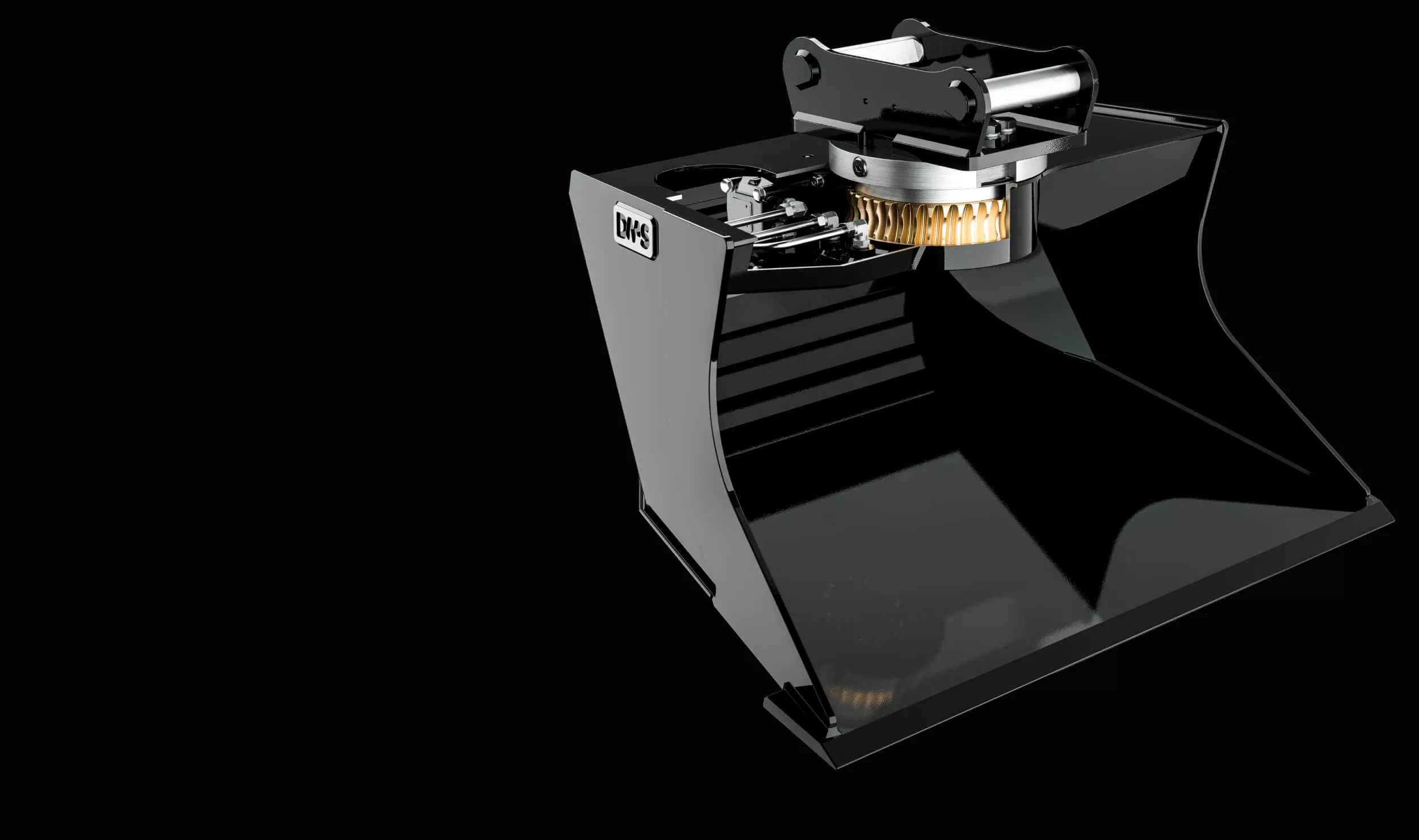

Heavy duty worm gearbox

for long service life and maximum ripping forces

Encapsulated gearbox housing

for protection against dust and debris

Integrated oil ducts

for maximum operating safety

Rotatorlöffel Produkt-Highlights
Large inspection opening

for easy access

High motor capacity

for use on many types of excavators

Accessible lubrication points

for simple daily maintenance

DMS Rotator Bucket -
diversity that knows no bounds

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Delivery & accessories

Scope of delivery
Available accessories
