Multi-coupling system MKS

MKS - 1,6-9 t

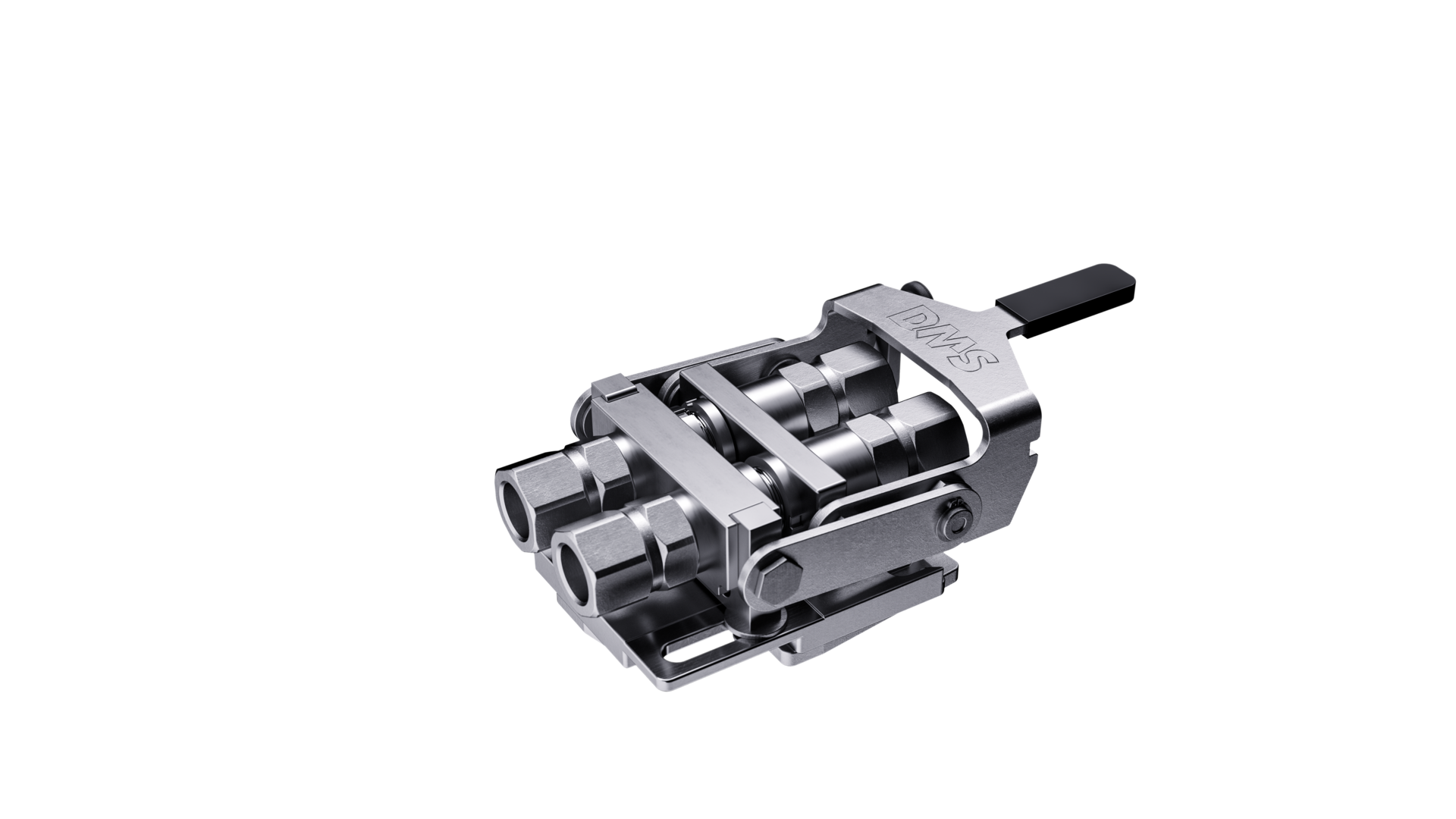

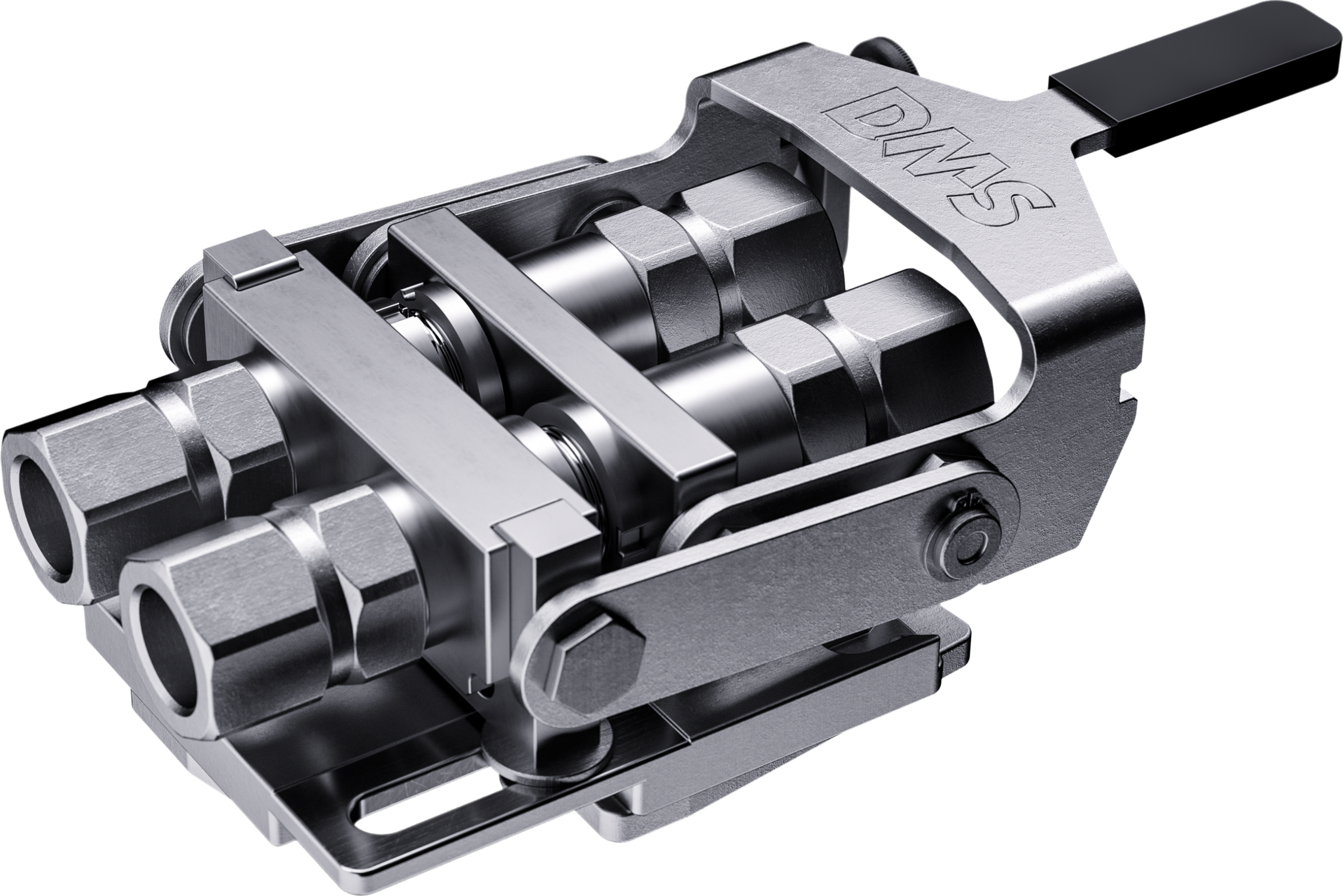

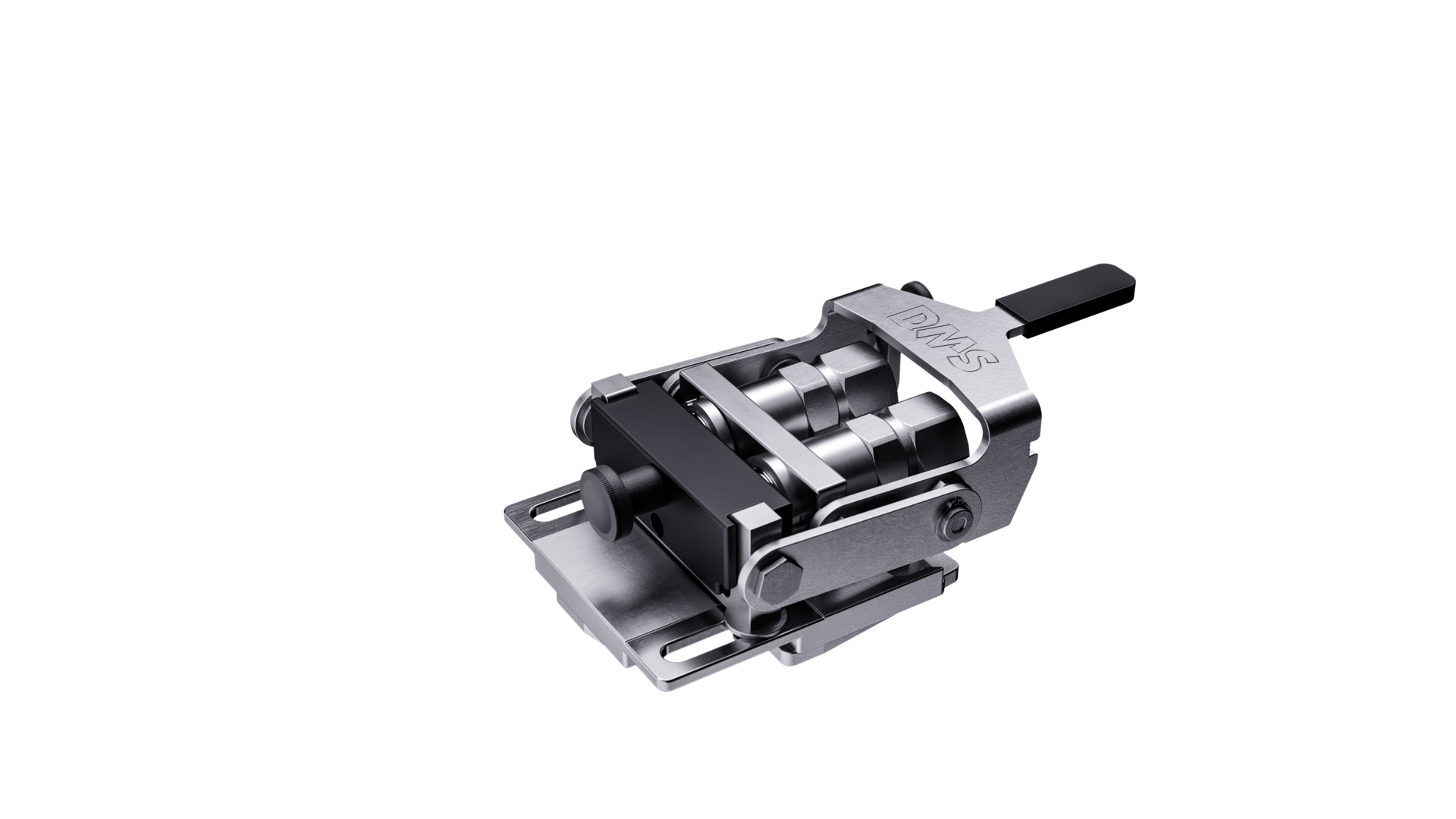

The DMS multi-coupling system enables particularly fast, clean and error-free connection of multiple hydraulic lines in a single operation, significantly increasing efficiency during daily tool changes. The flat-face coupling technology ensures leak-free connections and reliable performance even under residual pressure. Thanks to the ergonomic lever mechanism, the system can be operated with minimal effort and guarantees a secure, self-locking process.

The DMS multi-coupling system is fully compatible with common market solutions and is ideal for carrier machines with frequently changing hydraulic attachments. Additional protection components such as parking stations and protection plates increase durability and operational safety on demanding job sites.

Length [mm] 290
Height [mm] 80
Width [mm] 150
Operating pressure [bar] 300
Flow rates [l/min] 100
Back pressure [bar] 4
Size [inch] 1/2
Connection [inch] G3/4

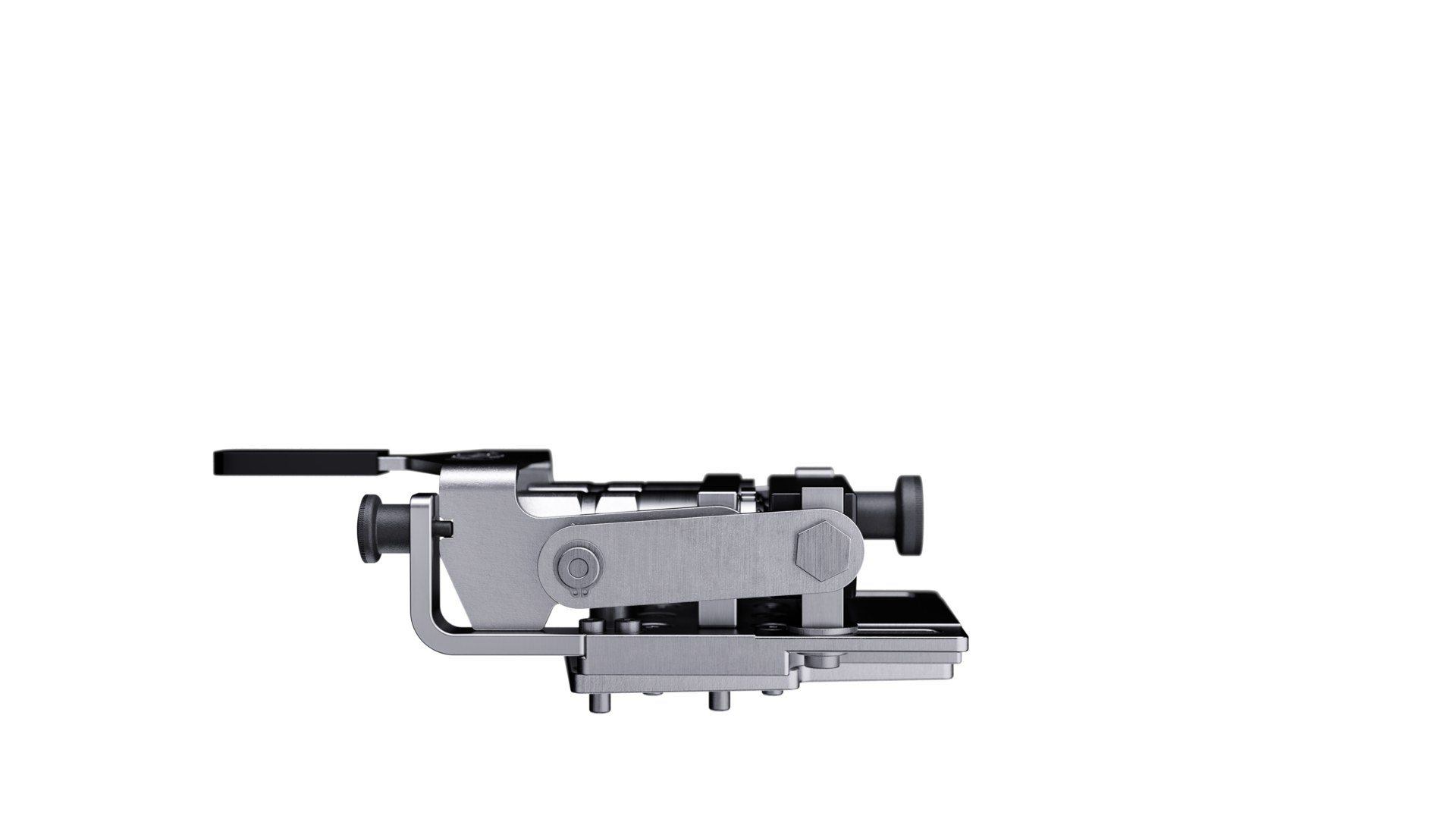

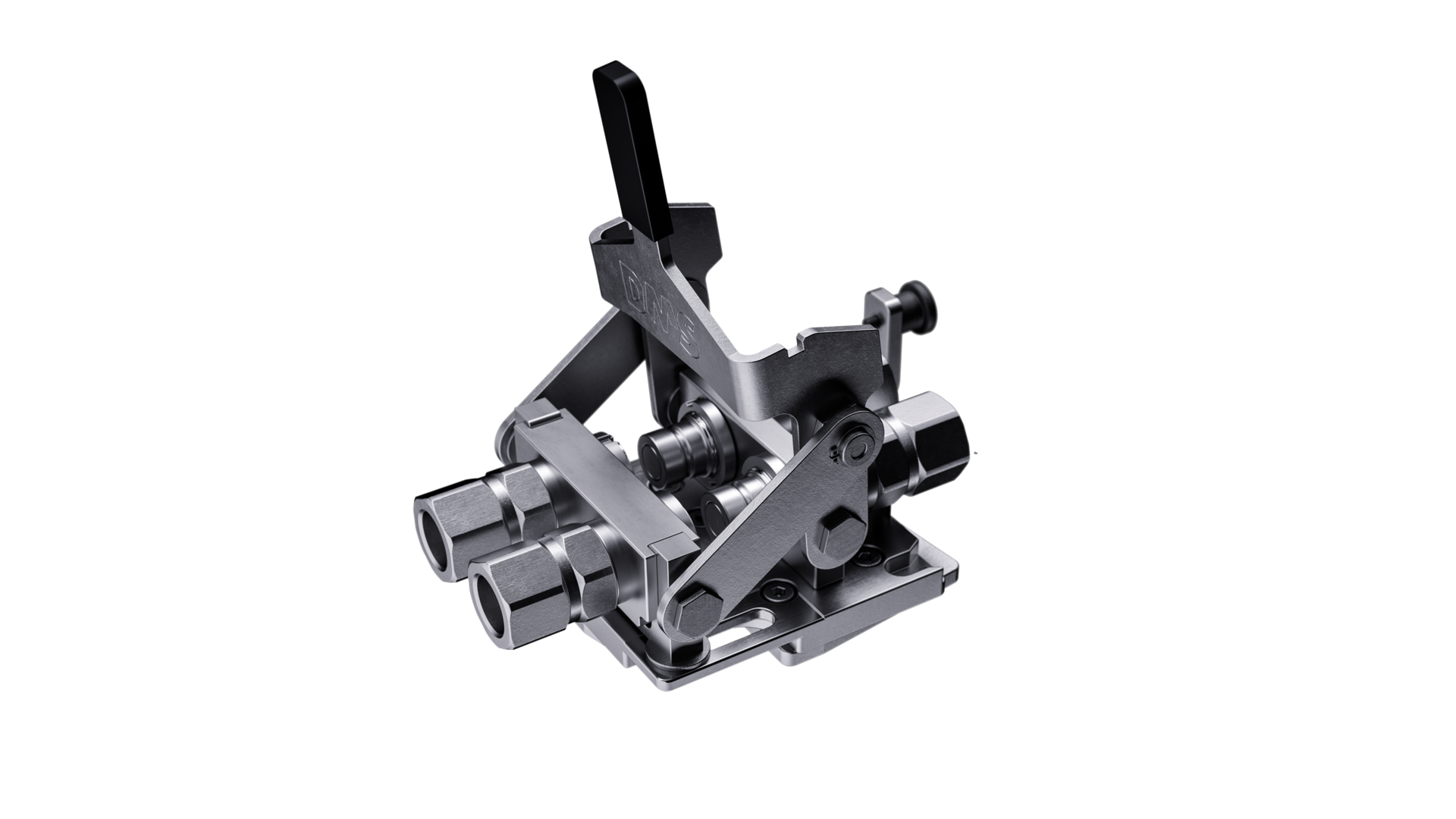

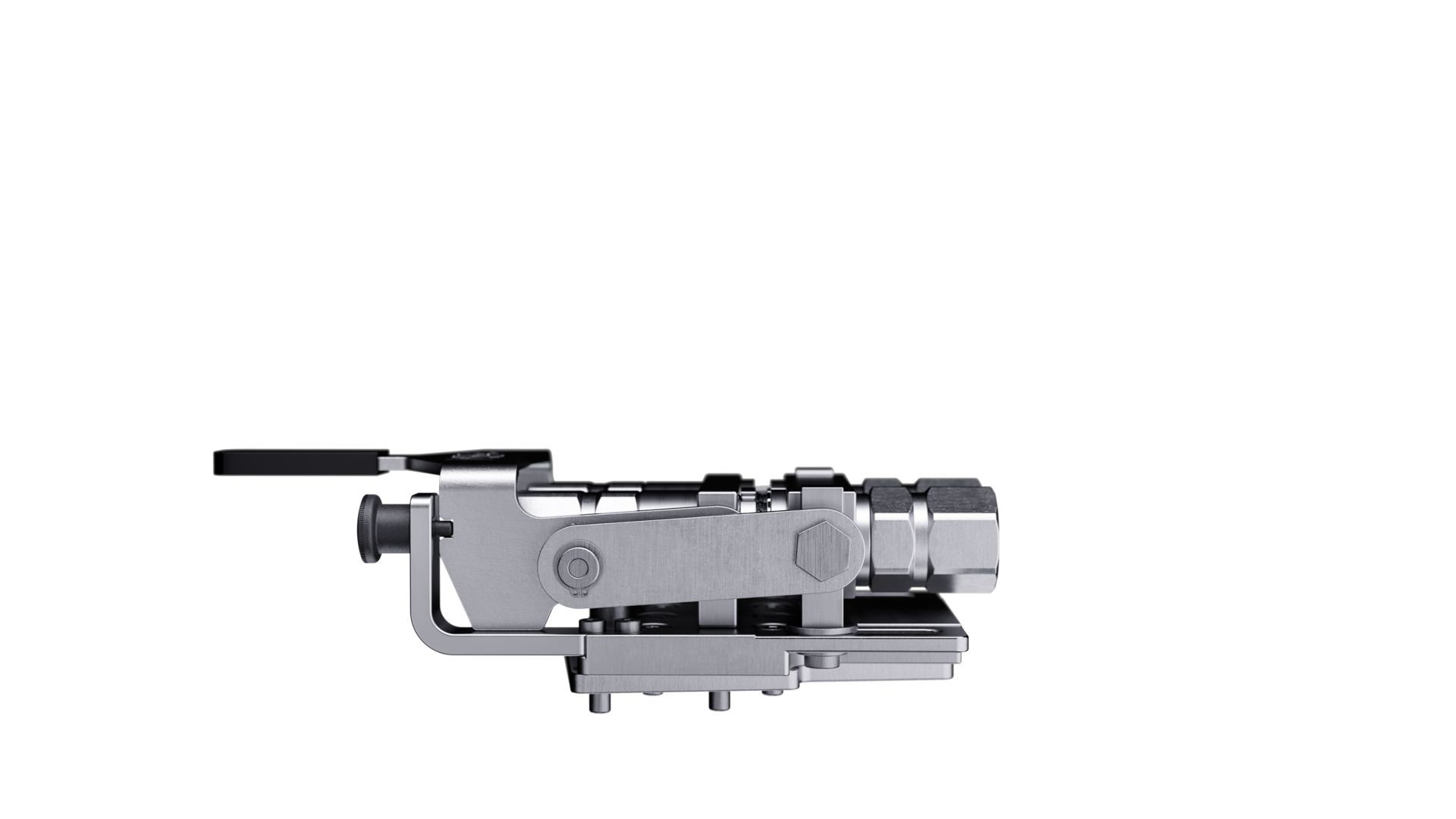

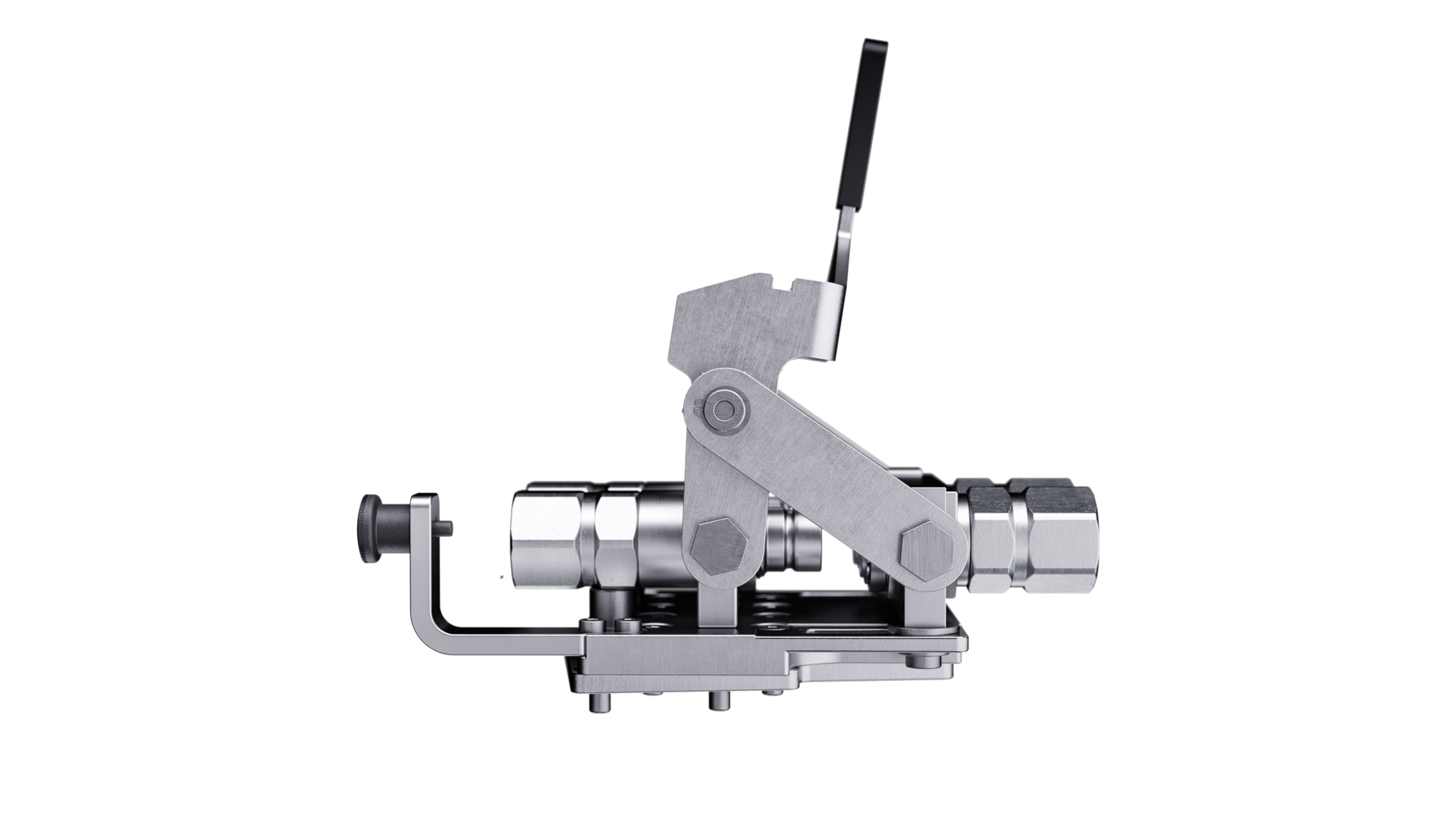

Lever mechanism for secure coupling

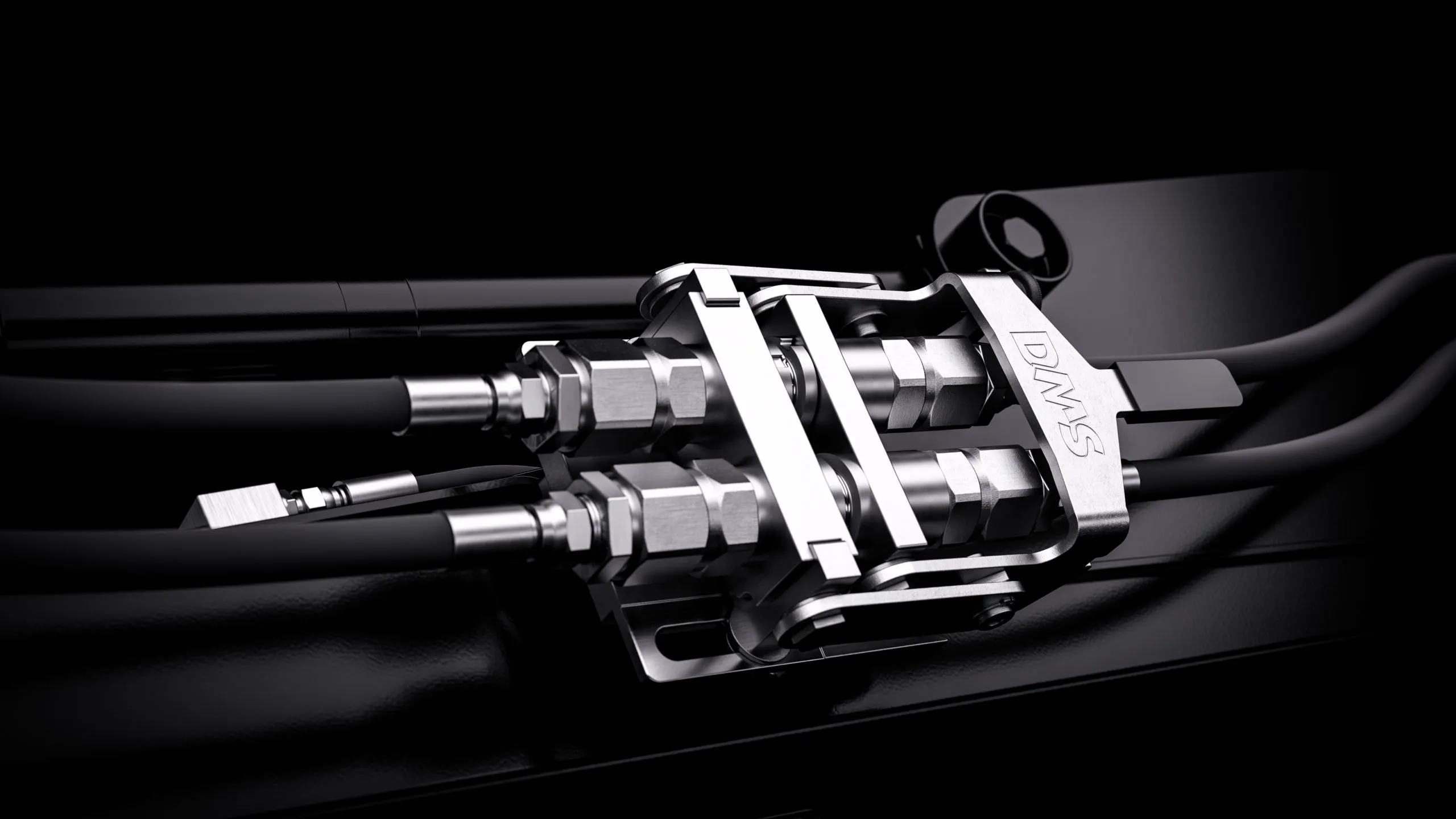

Side-mounted unit on the arm with integrated coupling inserts and lever locking for fast, low-effort operation.

Minimal stem widening

Thanks to a compact, robust design.

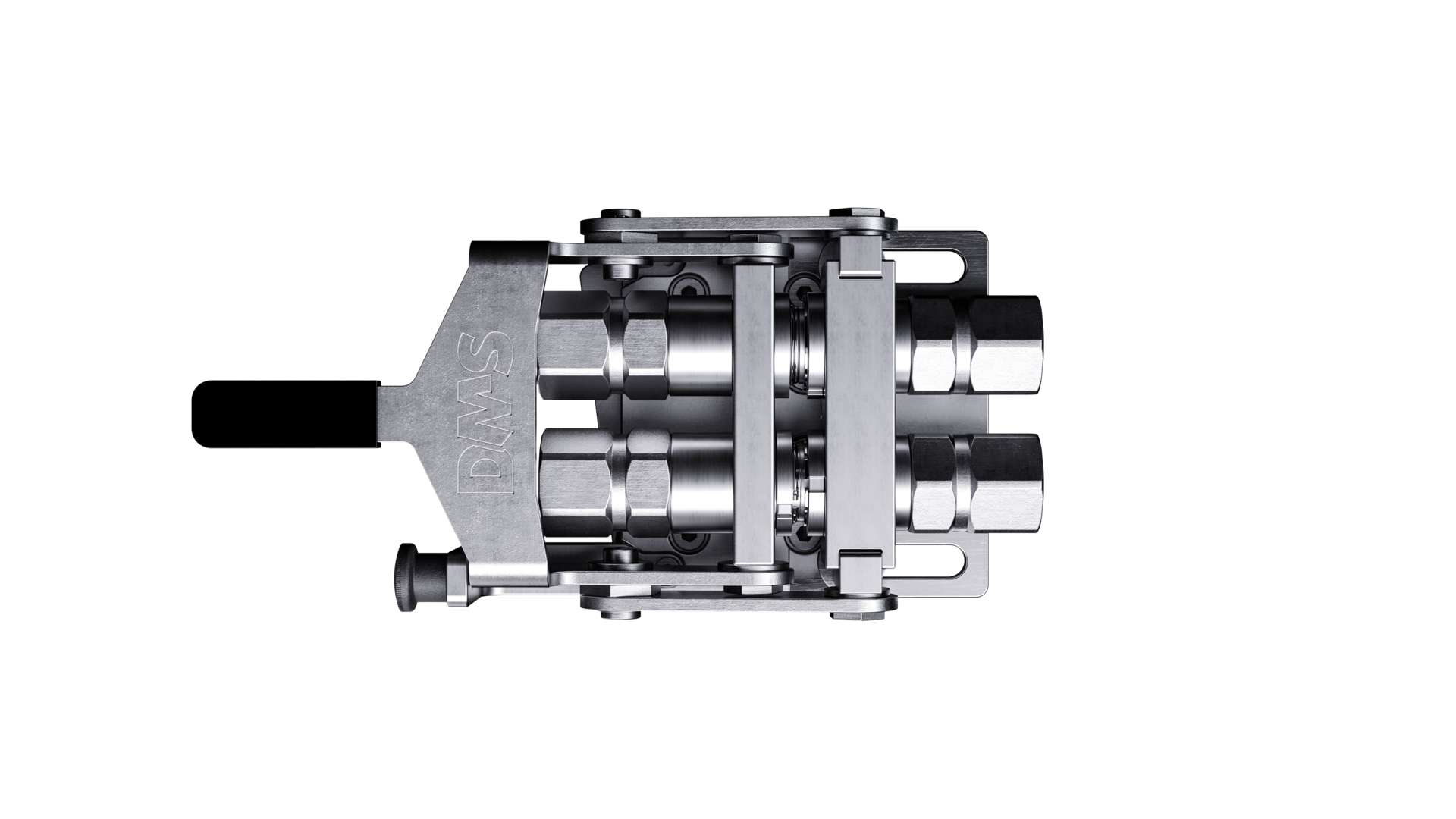

The multi-coupling system allows all hydraulic lines to be connected simultaneously in one step for extremely fast changes with no downtime.
Quick attachment change
Quick attachment change

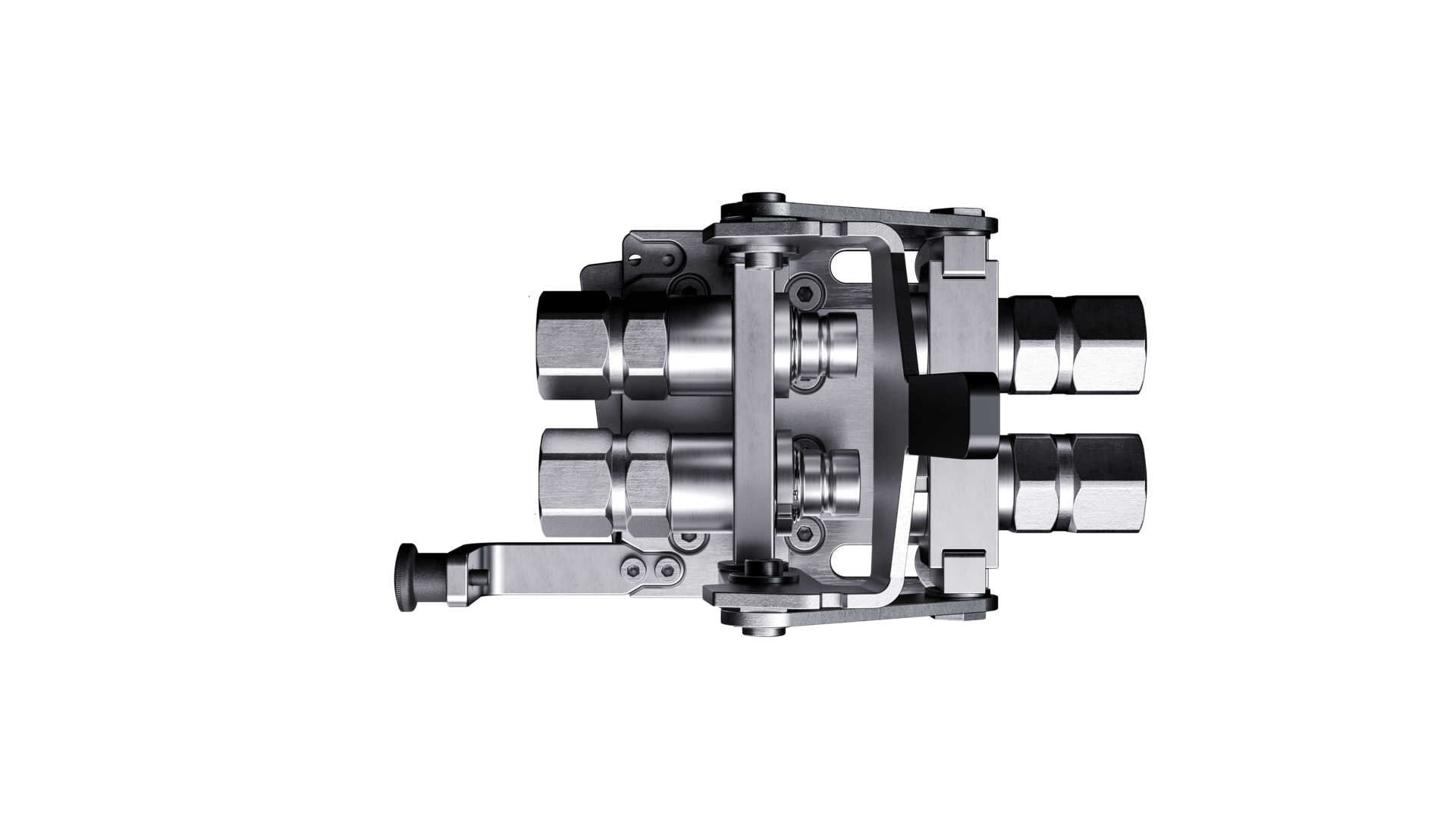

Even with residual or counter pressure, the couplings can be safely connected.
Coupling, even under pressure
Coupling, even under pressure

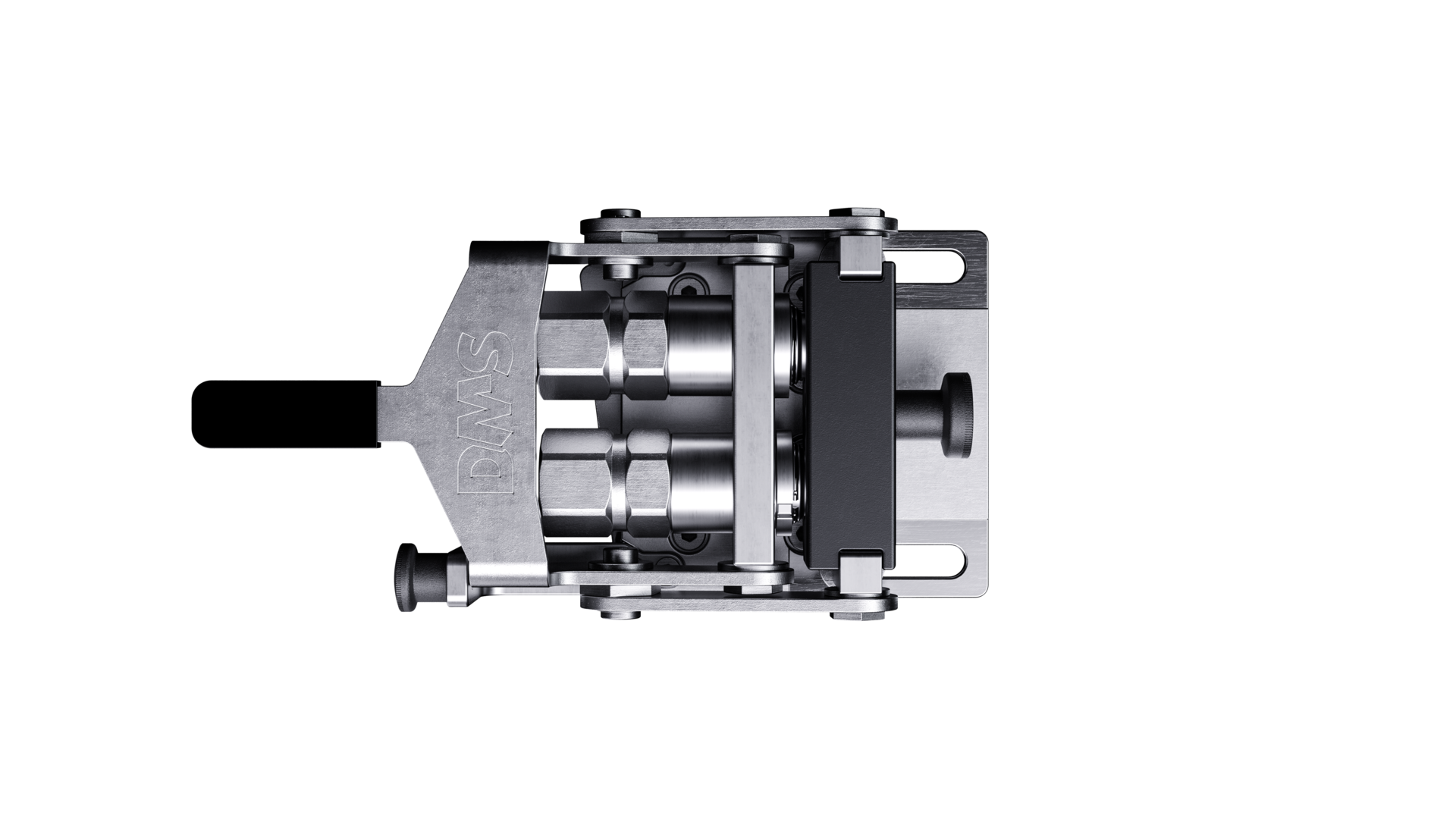

An integrated mechanical safeguard ensures that the mating couplings can only be inserted in the correct position – incorrect coupling is structurally impossible.
No risk of misconnection
No risk of misconnection
The multi-coupling system is compatible with common coupling systems and can be flexibly integrated into existing machine and attachment fleets.
Compatibility
Compatibility

Delivery & accessories

Scope of delivery
  • Multi-coupling system
  • Adapter plate – carrier machine specific
Available accessories
  • Coupling block set for tool – single
  • Coupling block set for tool – double
